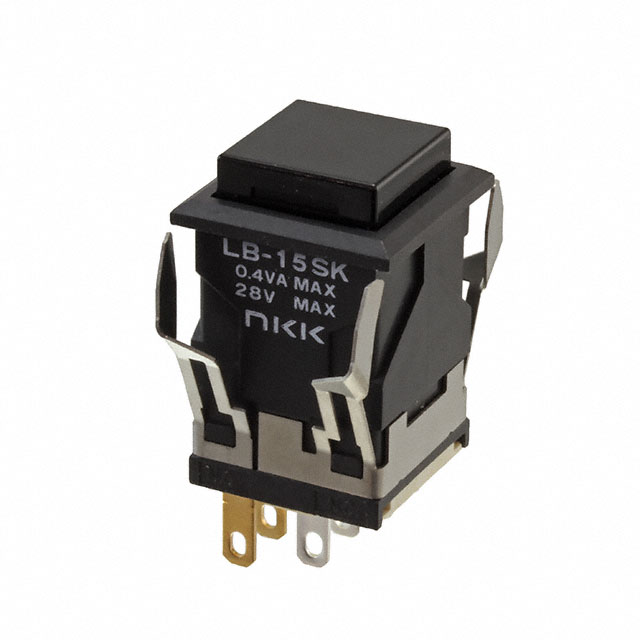

LB15SKG01-A

Active

NKK Switches

STANDARD SIZE SNAP-IN PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB15SKG01-A

Active

NKK Switches

STANDARD SIZE SNAP-IN PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB15SKG01-A

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	16.2 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

LB15SKG01 Series

Part	Current Rating (Amps)	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Type	Type	Voltage Rating - DC	Illumination Type, Color	Switch Function	Color - Actuator/Cap	Mechanical Life	Mounting Type	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Illumination Voltage (Nominal)	Termination Style	Termination Style	Termination Style
NKK Switches LB15SKG01-CF-B	0.4 VA	No Marking	50 °C	-25 °C	28 V	Button Square	Illuminated Standard	28 V	Green/Red LED	On-Mom	White	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT	2 VDC 2.2 VDC	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB15SKG01-5C-JC	0.4 VA	No Marking	50 °C	-25 °C	28 V	Button Square	Illuminated Standard	28 V	LED Red	On-Mom	Clear (Red Filter/Diffuser)	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT	1.9 VDC	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB15SKG01-5C12-JB	0.4 VA	No Marking	50 °C	-25 °C	28 V	Button Square	Illuminated Standard	28 V	LED Red	On-Mom	Clear	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT	12 VDC	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB15SKG01-5F-JB	0.4 VA	No Marking	50 °C	-25 °C	28 V	Button Square	Illuminated Standard	28 V	Green LED	On-Mom	Clear	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT	2.1 VDC	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB15SKG01-A	0.4 VA	No Marking	70 °C	-25 °C	28 V	Button Square	Standard	28 V		On-Mom	Black	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT		0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB15SKG01-6B-JB	0.4 VA	No Marking	50 °C	-25 °C	28 V	Button Square	Illuminated Standard	28 V	LED White	On-Mom	Clear	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT	3.3 VDC	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB15SKG01-1C-A	0.4 VA	No Marking	50 °C	-25 °C	28 V	Button Square	Illuminated Standard	28 V	LED Red	On-Mom	Black	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT	1.9 VDC	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB15SKG01-5C24-JC	0.4 VA	No Marking	50 °C	-25 °C	28 V	Button Square	Illuminated Standard	28 V	LED Red	On-Mom	Clear (Red Filter/Diffuser)	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT	24 V	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB15SKG01-05-JC	0.4 VA	No Marking	50 °C	-25 °C	28 V	Button Square	Illuminated Standard	28 V	Incandescent Red	On-Mom	Clear (Red Filter/Diffuser)	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT	5 VAC/DC	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB15SKG01-05-BJ	0.4 VA	No Marking	50 °C	-25 °C	28 V	Button Square	Illuminated Standard	28 V	Incandescent White	On-Mom	White	1000000 Cycles	Panel Mount Snap-In	100000 Cycles	16.2 mm	16.2 mm	SPDT	5 VAC/DC	0.11 in	Quick Connect Solder	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.59
		10	$ 12.28
		25	$ 11.69
		50	$ 11.09
		100	$ 10.70
		250	$ 10.04
		500	$ 9.19
		1000	$ 8.13
Newark	Each	1	$ 26.03
		5	$ 24.73
		10	$ 22.92
		25	$ 20.91
		50	$ 18.09
		100	$ 16.89
		250	$ 15.38

Description

General part information

LB15SKG01 Series

Pushbutton Switch SPDT Standard Panel Mount, Snap-In
