060-2443-07

Active

Honeywell Sensing and Productivity Solutions T&M

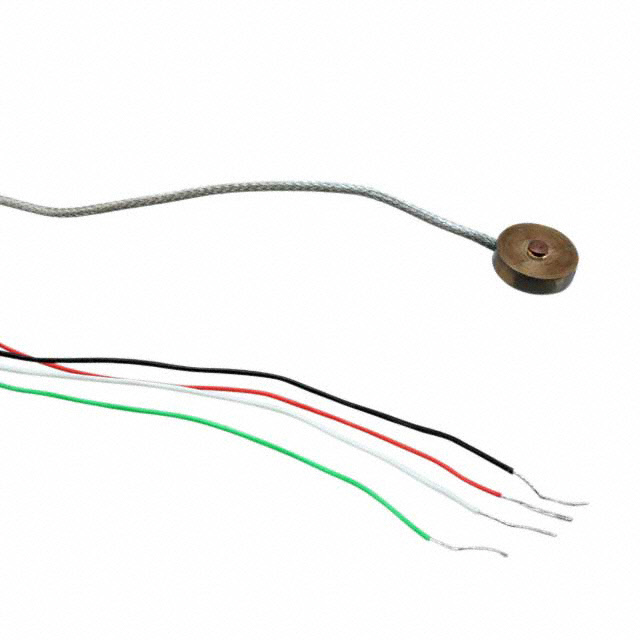

SENSOR FORCE LOAD CELL 25LBS

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

SENSOR FORCE LOAD CELL 25LBS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	060-2443-07	060-2443 Series

Accuracy	0.7 %	0.7 %
Actuator Style/Size	2.29 mm	2.29 mm
Actuator Style/Size	Round	Round
Actuator Type	Pushbutton	Pushbutton
Compensated Temperature [Max]	71 °C	71 °C
Compensated Temperature [Min]	15 °C	15 °C
Includes	Sensor	Sensor
Operating Force	25 lbs	2.2 - 50 lbs
Operating Force	11.34 kgf	1 - 22.68 kgf
Operating Temperature [Max]	121 °C	121 °C
Operating Temperature [Min]	-54 °C	-54 °C
Sensor Type	Load Cell	Load Cell

SENSOR FORCE LOAD CELL 2.2LBS

Part	Actuator Style/Size	Actuator Style/Size	Sensor Type	Actuator Type	Compensated Temperature [Max]	Compensated Temperature [Min]	Includes	Operating Force	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy
Honeywell Sensing and Productivity Solutions T&M 060-2443-02	2.29 mm	Round	Load Cell	Pushbutton	71 °C	15 °C	Sensor	2.2 lbs	1 kgf	121 °C	-54 °C	0.7 %
Honeywell Sensing and Productivity Solutions T&M 060-2443-08	2.29 mm	Round	Load Cell	Pushbutton	71 °C	15 °C	Sensor	50 lbs	22.68 kgf	121 °C	-54 °C	0.7 %
Honeywell Sensing and Productivity Solutions T&M 060-2443-06	2.29 mm	Round	Load Cell	Pushbutton	71 °C	15 °C	Sensor	10 lbs	4.54 kgf	121 °C	-54 °C	0.7 %
Honeywell Sensing and Productivity Solutions T&M 060-2443-07	2.29 mm	Round	Load Cell	Pushbutton	71 °C	15 °C	Sensor	25 lbs	11.34 kgf	121 °C	-54 °C	0.7 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1289.57

General part information

SENSOR FORCE LOAD CELL 25LBS

Technical documentation and resources
