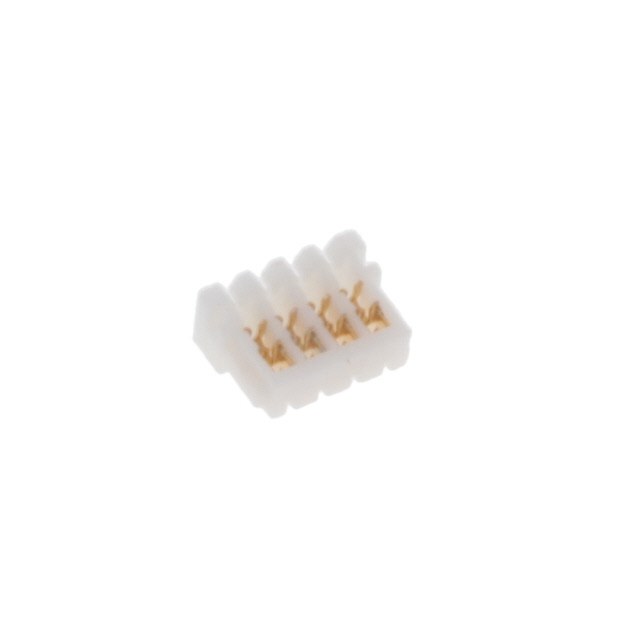

08CH-A-04-G-IDC

Active

Adam Tech

WIRE TO BOARD CRIMP HOUSING 4P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

08CH-A-04-G-IDC

Active

Adam Tech

WIRE TO BOARD CRIMP HOUSING 4P

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	08CH-A-04-G-IDC	08CH-A Series

Cable Termination	IDC	IDC
Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Tin, Gold
Contact Finish Thickness	Flash	Flash
Contact Type	Female Socket	Female Socket
Fastening Type	Friction Lock	Friction Lock
Features	Closed End	Closed End
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	2 - 10
Number of Rows	1	1
Pitch [x]	0.8 mm	0.8 mm
Pitch [x]	0.031 in	0.031 in
Wire Gauge [Max]	36 AWG	36 AWG
Wire Gauge [Min]	32 AWG	32 AWG
Wire Type	Discrete	Discrete

08CH-A Series

WIRE TO BOARD CRIMP HOUSING 2P 0

Part	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Fastening Type	Contact Finish	Mounting Type	Color	Features	Pitch [x]	Pitch [x]	Wire Type	Number of Rows	Cable Termination	Connector Type	Number of Positions	Contact Finish Thickness
Adam Tech 08CH-A-02-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Tin	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	2
Adam Tech 08CH-A-08-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	8	Flash
Adam Tech 08CH-A-06-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	6	Flash
Adam Tech 08CH-A-10-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Tin	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	10
Adam Tech 08CH-A-05-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle		Flash
Adam Tech 08CH-A-02-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	2	Flash
Adam Tech 08CH-A-04-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	4	Flash
Adam Tech 08CH-A-09-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Tin	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	9
Adam Tech 08CH-A-03-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle		Flash
Adam Tech 08CH-A-10-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	10	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.65
		10	$ 0.50
		25	$ 0.45
		50	$ 0.41
		100	$ 0.38
		250	$ 0.34
		500	$ 0.32
		2000	$ 0.27
		4000	$ 0.26
