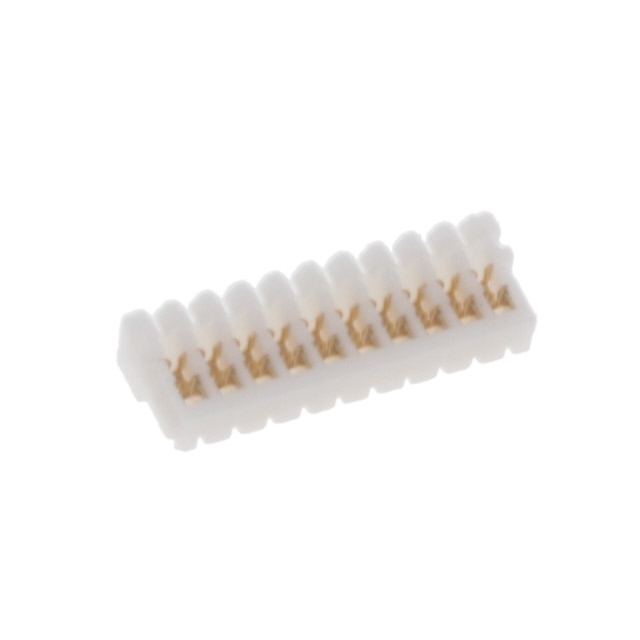

08CH-A-10-G-IDC
ActiveAdam Tech
WIRE TO BOARD CRIMP HOUSING 10P
Deep-Dive with AI
Search across all available documentation for this part.
08CH-A-10-G-IDC
ActiveAdam Tech
WIRE TO BOARD CRIMP HOUSING 10P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 08CH-A-10-G-IDC |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Female Socket |
| Fastening Type | Friction Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
| Wire Gauge [Max] | 36 AWG |
| Wire Gauge [Min] | 32 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.51 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 2000 | $ 0.24 | |||
Description
General part information
08CH-A-10-G-IDC
10 Position Rectangular Receptacle Connector IDC Gold 32-36 AWG
