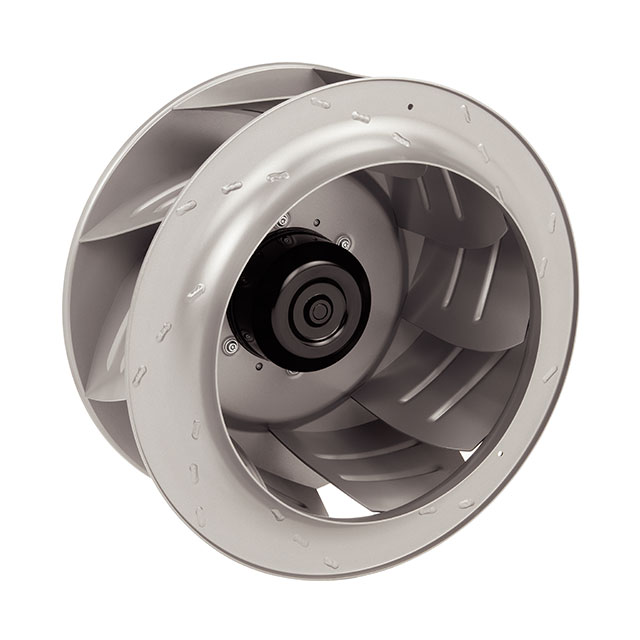

R3G500-AG34-63F

Active

ebm-papst Inc.

FAN BLOWER CENTRIFUGAL

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CENTRIFUGAL

Technical Specifications

Parameters and characteristics for this part

Specification	R3G500-AG34-63F

Air Flow	180.6 m³/min
Air Flow	6450 CFM
Approval Agency	UL
Current Rating (Amps)	7.8 A
Fan Type	3 Phase, Motorized Impellers
Features	Thermal Overload Protector (TOP), Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Material - Blade	Aluminum
Material - Frame	Aluminum
Operating Temperature [Max]	55 °C
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	2700 W
RPM	1700 RPM
Size / Dimension [diameter]	505 mm
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	220 VAC
Weight	50 lbs
Weight	22.7 kg
Width [x]	319 mm

Part	Size / Dimension [diameter]	Width [x]	Fan Type	Current Rating (Amps)	Ingress Protection	Power (Watts)	Features	Material - Frame	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Weight	Weight	Air Flow	Air Flow	Voltage - Rated [Max]	Voltage - Rated [Min]	Approval Agency
ebm-papst Inc. R3G500-AG34-63F	505 mm	319 mm	3 Phase Motorized Impellers	7.8 A	IP54 - Dust Protected Water Resistant	2700 W	Electronic Commutation (EC) Thermal Overload Protector (TOP)	Aluminum	1700 RPM	55 °C	55 °C	-25 °C	-25 °C	Aluminum	50 lbs	22.7 kg	180.6 m³/min	6450 CFM	240 VAC	220 VAC	UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers, 3 Phase 220 ~ 240VAC Round - 505mm Dia 6450 CFM (180.6m³/min)
