SPB160100E3

Obsolete

Microsemi Corporation

DIODE MOD SCHOT 100V 160A SOT227

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

DIODE MOD SCHOT 100V 160A SOT227

Technical Specifications

Parameters and characteristics for this part

Specification	SPB160100E3

Current - Average Rectified (Io) (per Diode)	160 A
Current - Reverse Leakage @ Vr	5 mA
Diode Configuration	2 Independent
Mounting Type	Chassis Mount

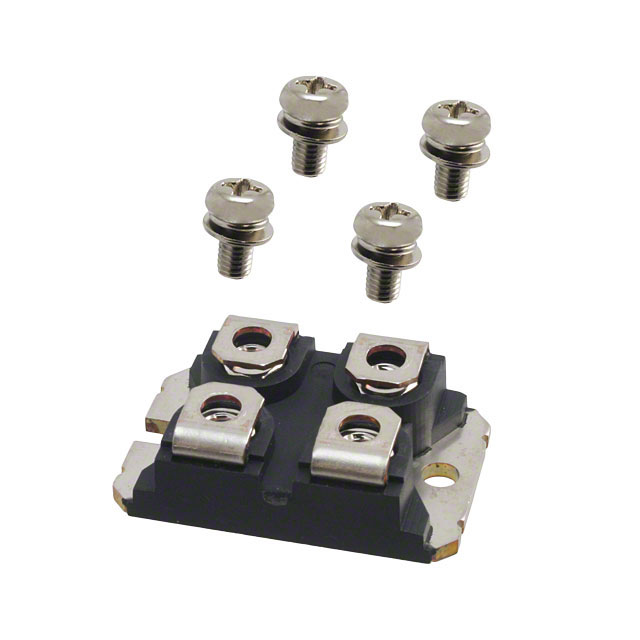

Package / Case	SOT-227-4, miniBLOC
Speed	200 mA, 500 ns
Supplier Device Package	SOT-227
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	920 mV

DIODE MOD SCHOT 100V 160A SOT227

Part	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Speed	Supplier Device Package	Package / Case	Technology	Current - Reverse Leakage @ Vr	Diode Configuration	Mounting Type
Microsemi Corporation SPB160100E3	920 mV	100 V	160 A	200 mA, 500 ns	SOT-227	SOT-227-4, miniBLOC	Schottky	5 mA	2 Independent	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 2 Independent 100 V 160A Chassis Mount SOT-227-4, miniBLOC
