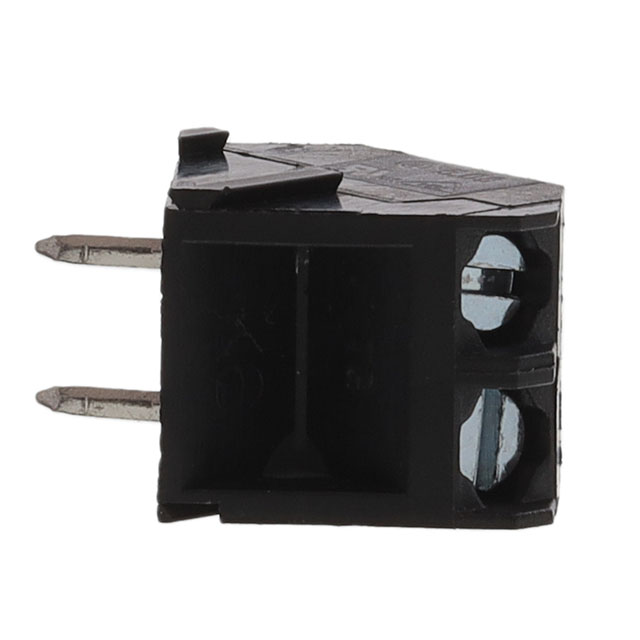

EBG-02-D
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Search across all available documentation for this part.
EBG-02-D
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EBG-02-D |
|---|---|
| Clamp Material - Plating | Brass - Nickel Plated |
| Color | Black |
| Current | 15 A |
| Features | Interlocking (Side) |
| Housing Material | Thermoplastic |
| Mating Orientation | 135 ° |
| Mating Orientation | 45 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 2 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M2.5 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5000 | $ 0.32 | |
Description
General part information
EBG Series
2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
