51-271.025

Active

EAO

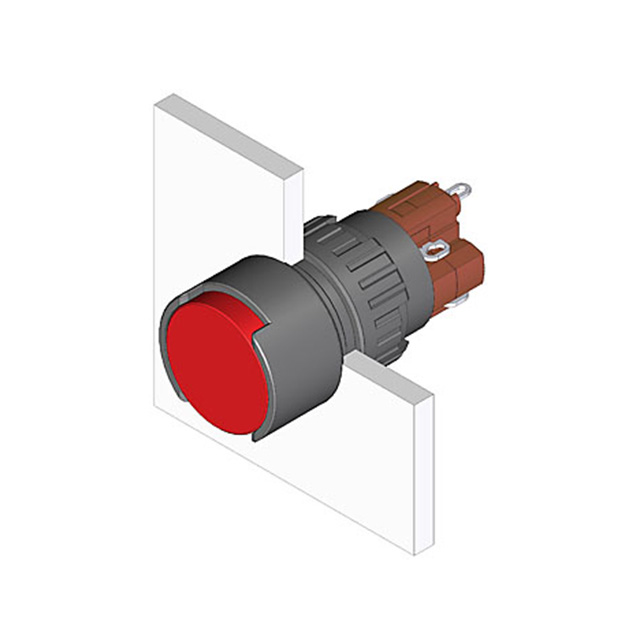

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	51-271.025	51-271 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button (Not Included)	Round, Button (Not Included)
Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Solder Lug	Solder Lug, Quick Connect, Solder
Termination Style	-	0.11 in
Termination Style	-	2.8 mm
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

SWITCH PB DPST-NO/NC 5A 250V

Part	Mounting Type	Actuator Marking	Switch Function	Circuit	Panel Cutout Dimensions [diameter]	Ingress Protection	Termination Style	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Type	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Termination Style
EAO 51-271.025	Panel Mount, Front	No Marking	Off-On, On-Off	DPST-NO/NC	16 mm	IP65 - Dust Tight, Water Resistant	Solder Lug	Round, Button (Not Included)	5 A	250 V	Standard	1000000 Cycles	55 °C	-25 °C
EAO 51-271.022	Panel Mount, Front	No Marking	Off-On, On-Off	DPST-NO/NC	16 mm	IP65 - Dust Tight, Water Resistant	Quick Connect, Solder	Round, Button (Not Included)	5 A	250 V	Standard	1000000 Cycles	55 °C	-25 °C	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
