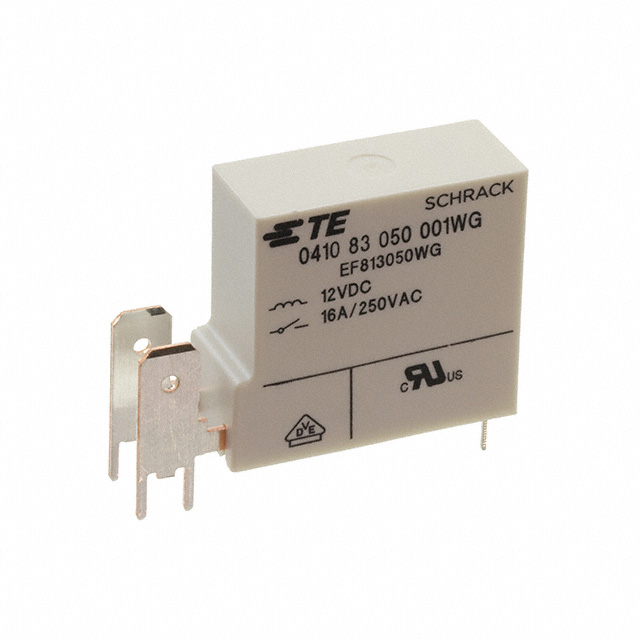

8-1415536-7

Active

TE Connectivity AMP Connectors

RELAY GEN PURPOSE SPST 16A 12V

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

RELAY GEN PURPOSE SPST 16A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPST 16A 12V

Part	Contact Rating (Current)	Must Operate Voltage	Relay Type	Mounting Type	Approval Agency	Contact Material	Must Release Voltage	Termination Style	Termination Style	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Contact Form	Coil Current	Switching Voltage [Max]	Load - Max Switching	Coil Voltage
TE Connectivity AMP Connectors 8-1415536-7	16 A	7.9 VDC	General Purpose	Through Hole	cURus, VDE	Silver Nickel (AgNi)	0.9 VDC	PC Pin, Quick Connect	0.25 in	400 Ohms	85 °C	-20 C	Non Latching	SPST-NO (DM) (1 Form X)	30 mA	400 VAC	6400 VA	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (DM) (1 Form X) 12VDC Coil Through Hole
