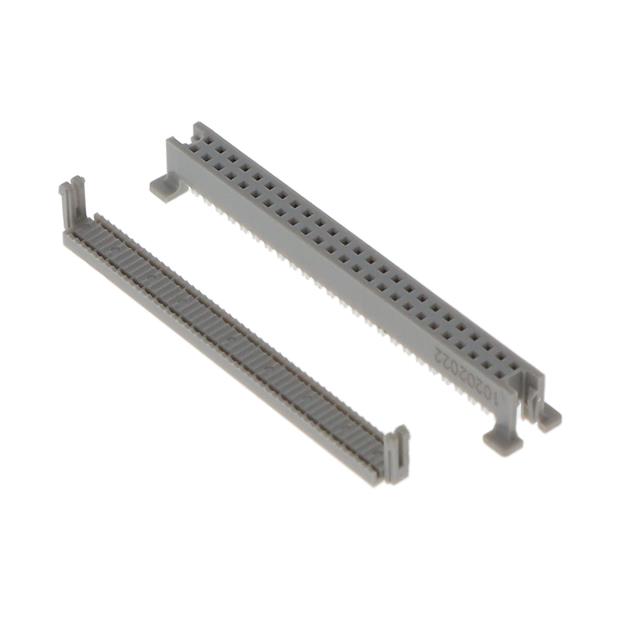

45150-000000

Active

3M (TC)

50P SKT NO CP

Search across all available documentation for this part.

Active

3M (TC)

50P SKT NO CP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Connector Type	Mounting Type	Row Spacing	Row Spacing	Contact Finish	Pitch [x]	Pitch [x]	Cable Termination	Number of Rows	Contact Type	Wire Gauge	Wire Type	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Fastening Type
3M (TC) 45150-010030	50	Receptacle	Free Hanging (In-Line)	1.27 mm	0.05 in	Gold	0.05 in	1.27 mm	IDC	2	Female Socket	30 AWG	Ribbon Cable	Feed Through Polarizing Key	0.76 Ám	30 Áin
3M (TC) 45150-000000	50	Receptacle	Free Hanging (In-Line)	1.27 mm	0.05 in	Gold	0.05 in	1.27 mm	IDC	2	Female Socket	30 AWG	Ribbon Cable	Feed Through			Flash
3M (TC) 45150-000030	50	Receptacle	Free Hanging (In-Line)	1.27 mm	0.05 in	Gold	0.05 in	1.27 mm	IDC	2	Female Socket	30 AWG	Ribbon Cable	Feed Through	0.76 Ám	30 Áin
3M (TC) 45150-020000	50	Receptacle	Free Hanging (In-Line)	1.27 mm	0.05 in	Gold	0.05 in	1.27 mm	IDC	2	Female Socket	30 AWG	Ribbon Cable	Feed Through Polarizing Key			Flash	Friction Lock
3M (TC) 45150-010000	50	Receptacle	Free Hanging (In-Line)	1.27 mm	0.05 in	Gold	0.05 in	1.27 mm	IDC	2	Female Socket	30 AWG	Ribbon Cable	Feed Through Polarizing Key			Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Rectangular Receptacle Connector IDC Gold 30 AWG
