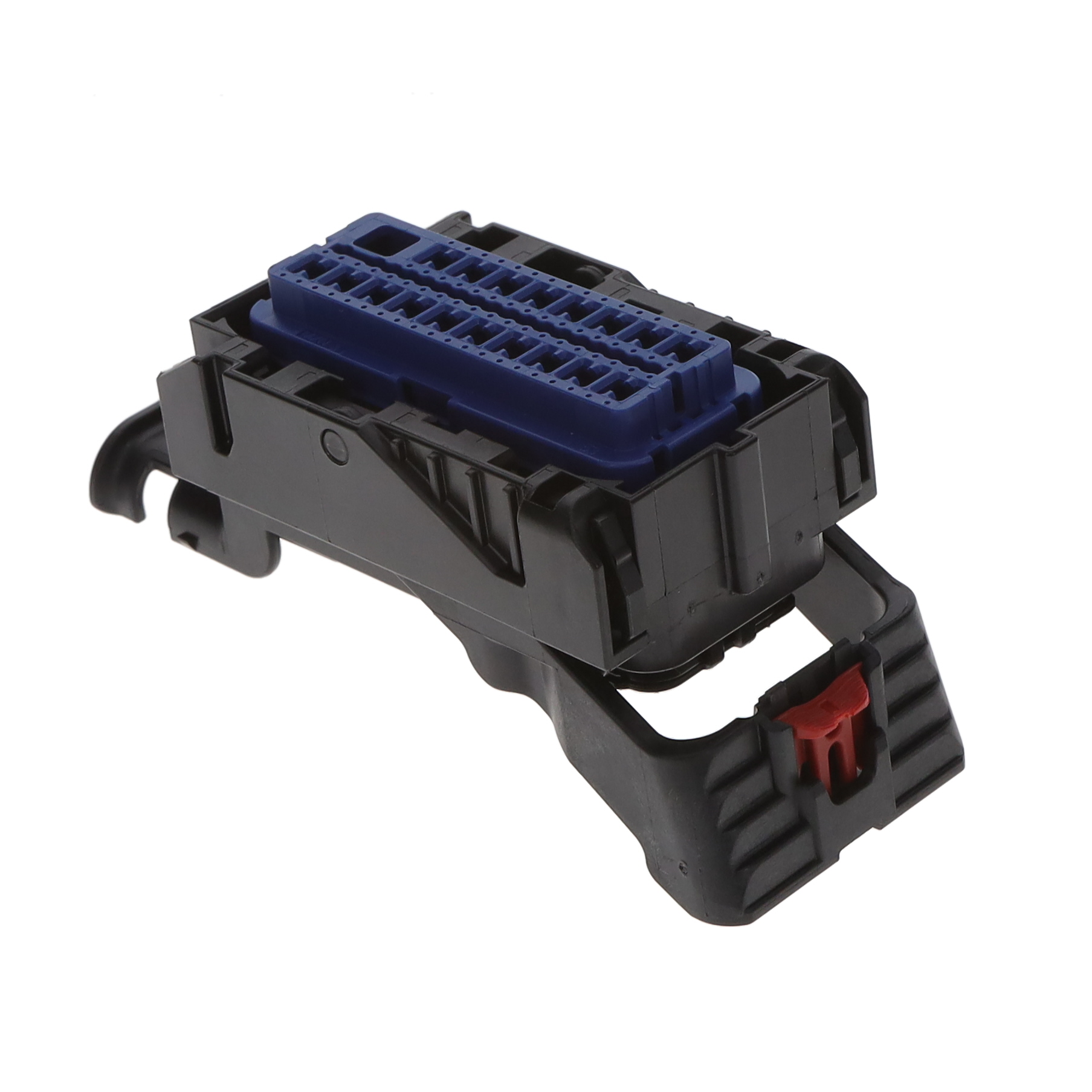

0345661503

Obsolete

CONN RCPT HSG 73POS OPT9

Obsolete

CONN RCPT HSG 73POS OPT9

Description

General part information

73 Rectangular Connectors - Housings Receptacle Blue

Parameters and characteristics for this part

Part	Contact Termination	Connector Type	Features	Insulation Material	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Contact Type	Number of Rows	Color	Mounting Type	Pitch	Note
Molex 0345662003	Crimp	Receptacle	Wire Guide	Glass Filled Polybutylene Terephthalate (PBT)	80	125 °C	-40 °C	Lever Lock	Female Socket	4	Gray	Free Hanging (In-Line)	0.1 in
Molex 0345664533
Molex 0345660103	Crimp	Receptacle	Wire Guide	Nylon Polyamide (PA)	73	125 °C	-40 °C	Lever Lock	Female Socket	4	Black	Free Hanging (In-Line)		Contacts Not Included
Molex 0345661503	Crimp	Receptacle	Wire Guide	Nylon Polyamide (PA)	73	125 °C	-40 °C	Lever Lock	Female Socket	4	Blue	Free Hanging (In-Line)		Contacts Not Included
Molex 0345661303	Crimp	Receptacle	Wire Guide	Nylon Polyamide (PA)	73	125 °C	-40 °C	Lever Lock	Female Socket	4	Black	Free Hanging (In-Line)		Contacts Not Included
Molex 0345660203	Crimp	Receptacle	Wire Guide	Nylon Polyamide (PA)	73	125 °C	-40 °C	Lever Lock	Female Socket	4	Gray	Free Hanging (In-Line)		Contacts Not Included
Molex 0345660803	Crimp	Receptacle	Wire Guide	Nylon Polyamide (PA)	80	125 °C	-40 °C	Lever Lock	Female Socket	4	Gray	Free Hanging (In-Line)		Contacts Not Included

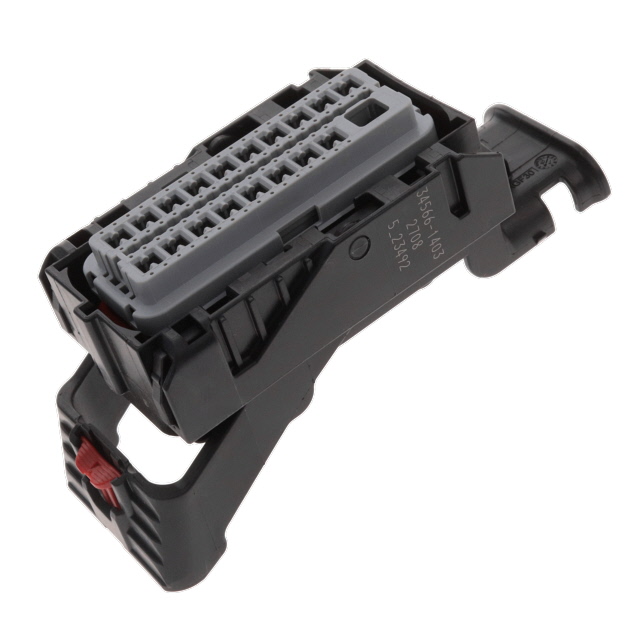

Molex 0345661403	Crimp	Receptacle	Wire Guide	Nylon Polyamide (PA)	73	125 °C	-40 °C	Lever Lock	Female Socket	4	Gray	Free Hanging (In-Line)		Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
