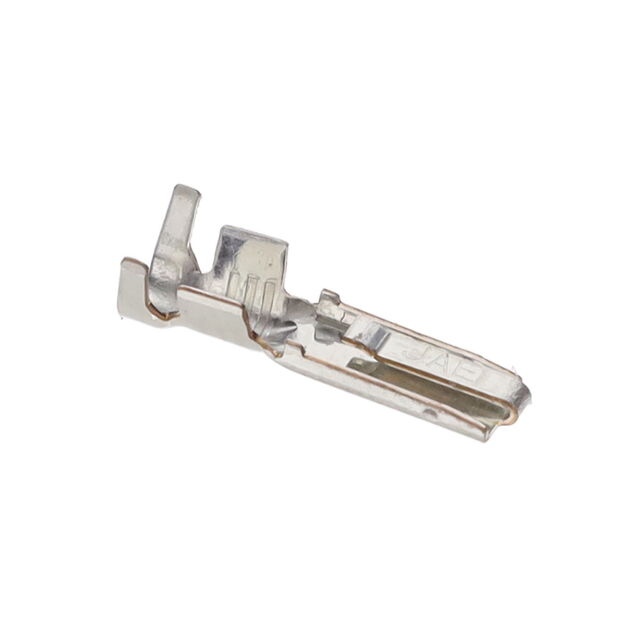

ES5P09K4F2
ActiveJAE Electronics
CONN SSL PLUG CONT 22AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ES5P09K4F2
ActiveJAE Electronics
CONN SSL PLUG CONT 22AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES5P09K4F2 |
|---|---|
| Connector Type | Plug, Contact |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Fastening Type | Latch Lock |
| Mating Cycles | 20 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Style | Board to Cable/Wire |
| Termination | Crimp |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.17 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.17 | ||
| 10 | $ 0.14 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| Tape & Reel (TR) | 9000 | $ 0.06 | ||
| 18000 | $ 0.06 | |||
| 27000 | $ 0.05 | |||
| 63000 | $ 0.05 | |||
Description
General part information
ES5P09K4 Series
22 AWG SSL Contact, Plug Crimp Free Hanging (In-Line)
