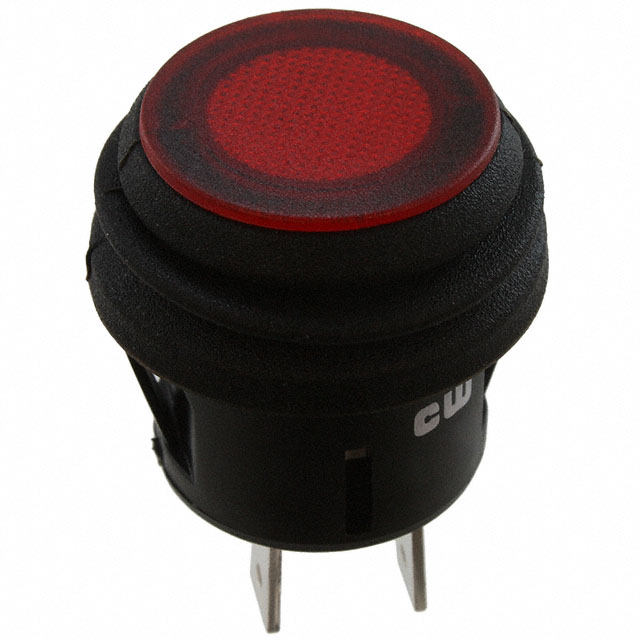

GPB527A2L02BR1
ActiveCW Industries
SWITCH PUSH DPST-NO 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GPB527A2L02BR1
ActiveCW Industries
SWITCH PUSH DPST-NO 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GPB527A2L02BR1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 10 A |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 20.2 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.65 | |
| 10 | $ 6.60 | |||
| 25 | $ 6.23 | |||
| 50 | $ 5.96 | |||
Description
General part information
GPB527A Series
Pushbutton Switch DPST-NO Standard, Illuminated Panel Mount, Snap-In
