2-1241817-3
ActiveTE Connectivity AMP Connectors

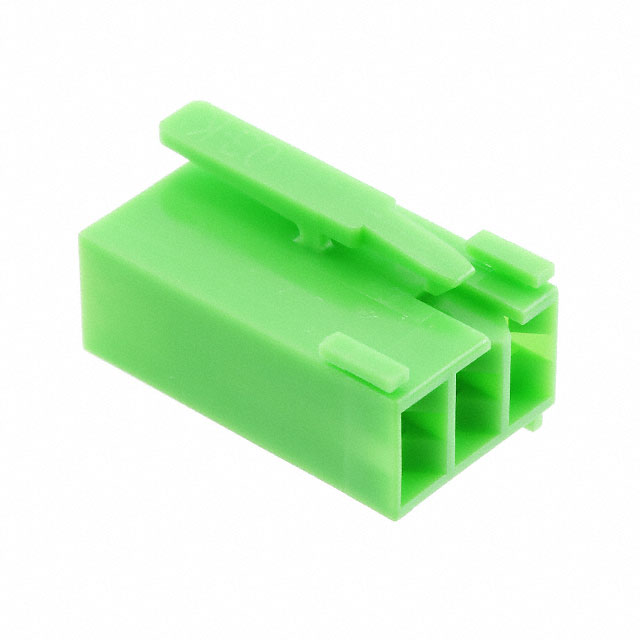

CONN RCPT HSG 3POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1241817-3
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 3POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1241817-3 |
|---|---|
| Color | Green |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 26000 | $ 0.28 | |
1241817 Series
CONN RCPT HSG 3POS 5.00MM
| Part | Color | Contact Termination | Number of Rows | Insulation Material | Fastening Type | Connector Type | Pitch [x] | Pitch [x] | Contact Type | Note | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1241817-3 | Green | Crimp | 1 | Polyamide (PA66), Nylon 6/6 | Latch Lock | Receptacle | 5 mm | 0.197 in | Female Socket | Contacts Not Included | Free Hanging (In-Line) | -40 °C | 105 ░C |
Description
General part information
1241817 Series
3 Rectangular Connectors - Housings Receptacle Green 0.197" (5.00mm)
