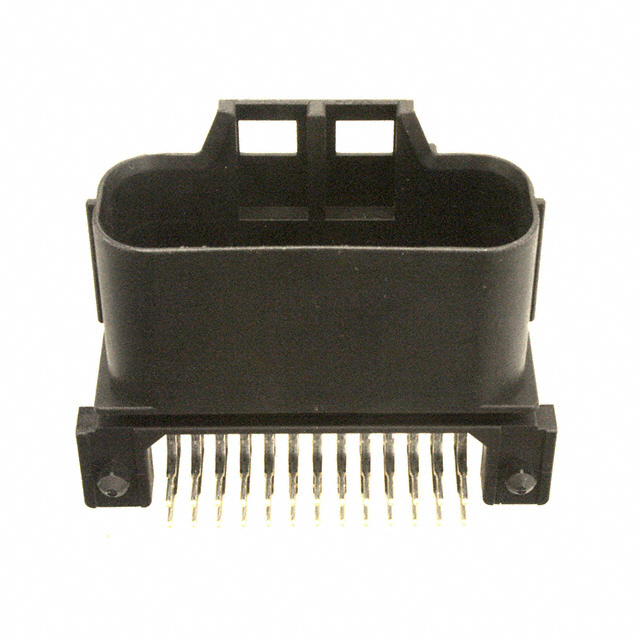

MX23A26NF1

Active

JAE Electronics

CONN HEADER R/A 26POS 2.5MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER R/A 26POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX23A26NF1

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Waterproof
Insulation Color	Black
Insulation Height	18.3 mm
Insulation Height	0.72 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	4.4 mm
Row Spacing - Mating	0.173 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish - Post	Features	Mounting Type	Number of Positions	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Style	Ingress Protection	Contact Type	Number of Rows	Contact Material	Insulation Color	Termination	Insulation Material	Fastening Type	Current Rating (Amps)	Contact Shape	Pitch - Mating	Pitch - Mating	Applications	Shrouding	Connector Type
JAE Electronics MX23A26NF1	125 °C	-40 °C	All	Tin	Board Guide	Through Hole Right Angle	26	0.122 "	3.1 mm	4.4 mm	0.173 in	18.3 mm	0.72 in	Board to Cable/Wire	Waterproof	Male Pin	2	Brass	Black	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	3 A	Square	2.5 mm	0.098 in	Automotive	Shrouded - 4 Wall	Header
JAE Electronics MX23A26NF5
JAE Electronics MX23A26NF3	125 °C	-40 °C	All	Tin	Mounting Flange	Through Hole Right Angle	26	0.122 "	3.1 mm	4.4 mm	0.173 in	18.3 mm	0.72 in	Board to Cable/Wire	Waterproof	Male Pin	2	Brass	Black	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	3 A	Square	2.5 mm	0.098 in	Automotive	Shrouded - 4 Wall	Header
JAE Electronics MX23A26NF2	125 °C	-40 °C	All	Tin	Board Guide	Through Hole Right Angle	26	0.122 "	3.1 mm	4.4 mm	0.173 in	18.3 mm	0.72 in	Board to Cable/Wire	Waterproof	Male Pin	2	Brass	Black	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	3 A	Square	2.5 mm	0.098 in	Automotive	Shrouded - 4 Wall	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 26 position 0.098" (2.50mm)
