MIC33050-CYHL-EV
ObsoleteEVAL BOARD HIGH EFF BUCK REG
Deep-Dive with AI
Search across all available documentation for this part.

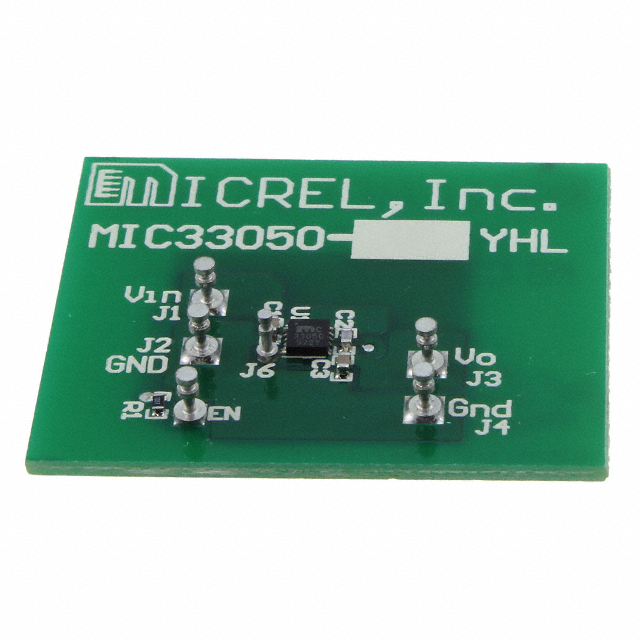

MIC33050-CYHL-EV
ObsoleteEVAL BOARD HIGH EFF BUCK REG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MIC33050-CYHL-EV | MIC33050 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 600 mA | 600 mA |
| Frequency - Switching | 4 MHz | 4 MHz |
| Function | - | Step-Down |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Positive |
| Output Type | - | 1.81 mOhm |
| Output Type | - | Adjustable |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 12-VFDFN Exposed Pad, 12-MLF® |
| Regulator Topology | Buck | Buck |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 12-MLF™ (3x3) |
| Synchronous Rectifier | - | True |
| Topology | - | Buck |
| Utilized IC / Part | MIC33050 | MIC33050 |
| Voltage - Input (Max) | - | 5.5 V |
| Voltage - Input (Min) | - | 2.7 V |
| Voltage - Input [Max] | 5.5 V | 5.5 V |
| Voltage - Input [Min] | 2.7 V | 2.7 V |
| Voltage - Output | 1 V | 1 - 3.3 V |
| Voltage - Output (Max) | - | 4.9 V |
| Voltage - Output (Min/Fixed) | - | 0.4 - 3.3 V |
MIC33050 Series
High Efficiency 600mA Inductor-less Buck Regulator Power Module w/Hyper Light Load™
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Voltage - Output | Current - Output | Frequency - Switching | Utilized IC / Part | Supplied Contents | Main Purpose | Outputs and Type | Outputs and Type | Board Type | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | Output Configuration | Mounting Type | Synchronous Rectifier | Function | Package / Case | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Output (Min/Fixed) | Topology | Voltage - Output (Max) [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MIC33050-SYHL-EV | 2.7 V | 5.5 V | Buck | 3.3 V | 600 mA | 4 MHz | MIC33050 | Board(s) | DC/DC, Step Down | Non-Isolated | 1 | Fully Populated | ||||||||||||||||
Microchip Technology MIC33050-CYHL-EV | 2.7 V | 5.5 V | Buck | 1 V | 600 mA | 4 MHz | MIC33050 | Board(s) | DC/DC, Step Down | Non-Isolated | 1 | Fully Populated | ||||||||||||||||
Microchip Technology MIC33050-SYHL-TR | 600 mA | 4 MHz | 12-MLF™ (3x3) | -40 °C | 125 ¯C | 1.81 mOhm | Positive | Surface Mount | Step-Down | 12-MLF®, 12-VFDFN Exposed Pad | 2.7 V | 5.5 V | 1 | 3.3 V | Buck | |||||||||||||
Microchip Technology MIC33050-CYHL-TR | 600 mA | 4 MHz | 12-MLF™ (3x3) | -40 °C | 125 ¯C | 1.81 mOhm | Positive | Surface Mount | Step-Down | 12-MLF®, 12-VFDFN Exposed Pad | 2.7 V | 5.5 V | 1 | 1 V | Buck | |||||||||||||
Microchip Technology MIC33050-AYHL-TR | 600 mA | 4 MHz | 12-MLF™ (3x3) | -40 °C | 125 ¯C | Positive | Surface Mount | Step-Down | 12-MLF®, 12-VFDFN Exposed Pad | 2.7 V | 5.5 V | 1 | 0.4 V | Buck | 4.9 V | Adjustable | ||||||||||||
Microchip Technology MIC33050-4YHL-TR | 600 mA | 4 MHz | 12-MLF™ (3x3) | -40 °C | 125 ¯C | 1.81 mOhm | Positive | Surface Mount | Step-Down | 12-MLF®, 12-VFDFN Exposed Pad | 2.7 V | 5.5 V | 1 | 1.2 V | Buck | |||||||||||||
Microchip Technology MIC33050-AYHL-T5 | 600 mA | 4 MHz | 12-MLF™ (3x3) | -40 °C | 125 ¯C | Positive | Surface Mount | Step-Down | 12-MLF®, 12-VFDFN Exposed Pad | 2.7 V | 5.5 V | 1 | 0.4 V | Buck | 4.9 V | Adjustable | ||||||||||||
Microchip Technology MIC33050-GYHL-EV | 2.7 V | 5.5 V | Buck | 1.8 V | 600 mA | 4 MHz | MIC33050 | Board(s) | DC/DC, Step Down | Non-Isolated | 1 | Fully Populated | ||||||||||||||||
Microchip Technology MIC33050-4YHL-EV | 2.7 V | 5.5 V | Buck | 1.2 V | 600 mA | 4 MHz | MIC33050 | Board(s) | DC/DC, Step Down | Non-Isolated | 1 | Fully Populated | ||||||||||||||||
Microchip Technology MIC33050-GYHL-TR | 600 mA | 4 MHz | 12-MLF™ (3x3) | -40 °C | 125 ¯C | 1.81 mOhm | Positive | Surface Mount | Step-Down | 12-MLF®, 12-VFDFN Exposed Pad | 2.7 V | 5.5 V | 1 | 1.8 V | Buck |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 33.10 | |
Description
General part information
MIC33050 Series
The MIC33050 is a high efficiency 600mA PWM synchronous buck (step-down) regulator with internal inductor featuring HyperLight Load®, a patent-pending switching scheme that offers best-in-class light load efficiency and transient performance while providing very small external components and low output ripple at all loads.
The MIC33050 also has a very low typical quiescent current draw of 20µA and can achieve over 83% efficiency even at 1mA.
In contrast to traditional light load schemes, the HyperLight Load® architecture does need not trade off control speed to obtain low standby currents and in doing so, the device only needs a small output capacitor to absorb the load transient as the powered device goes from light load to full load.
