MIC33050-AYHL-T5

Active

Microchip Technology

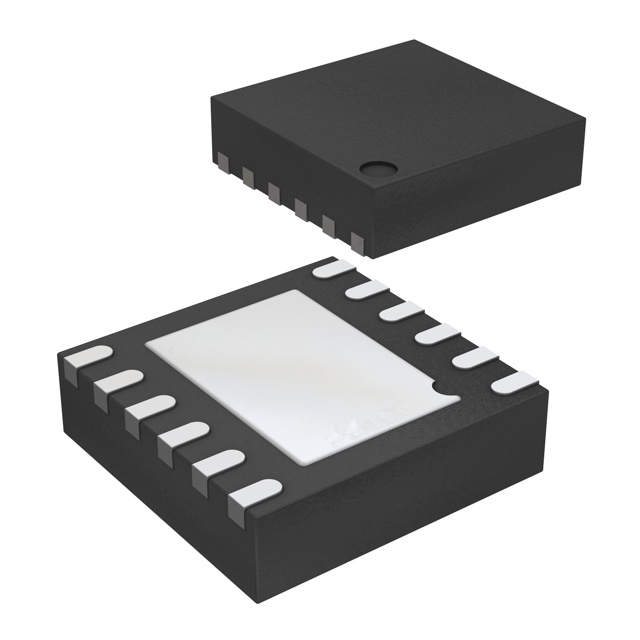

IC REG BUCK ADJ 600MA 12MLF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MIC33050-AYHL-T5

Active

Microchip Technology

IC REG BUCK ADJ 600MA 12MLF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MIC33050 Series

The MIC33050 is a high efficiency 600mA PWM synchronous buck (step-down) regulator with internal inductor featuring HyperLight Load®, a patent-pending switching scheme that offers best-in-class light load efficiency and transient performance while providing very small external components and low output ripple at all loads.

The MIC33050 also has a very low typical quiescent current draw of 20µA and can achieve over 83% efficiency even at 1mA.

In contrast to traditional light load schemes, the HyperLight Load® architecture does need not trade off control speed to obtain low standby currents and in doing so, the device only needs a small output capacitor to absorb the load transient as the powered device goes from light load to full load.

Documents

Technical documentation and resources

Datasheet

Specification	MIC33050-AYHL-T5	MIC33050 Series

Board Type	-	Fully Populated
Current - Output	600 mA	600 mA
Frequency - Switching	4 MHz	4 MHz
Function	Step-Down	Step-Down
Main Purpose	-	DC/DC, Step Down
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	Adjustable	Adjustable
Output Type	-	1.81 mOhm
Outputs and Type	-	Non-Isolated
Outputs and Type	-	1
Package / Case	12-VFDFN Exposed Pad, 12-MLF®	12-VFDFN Exposed Pad, 12-MLF®
Regulator Topology	-	Buck
Supplied Contents	-	Board(s)
Supplier Device Package	12-MLF™ (3x3)	12-MLF™ (3x3)
Synchronous Rectifier	True	True
Topology	Buck	Buck
Utilized IC / Part	-	MIC33050
Voltage - Input	-	2.7 V
Voltage - Input	-	5.5 V
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	2.7 V	2.7 V
Voltage - Output	-	1 - 3.3 V
Voltage - Output (Max) [Max]	4.9 V	4.9 V
Voltage - Output (Min/Fixed)	0.4 V	0.4 - 3.3 V

Part

Voltage - Input [Min]

Voltage - Input [Max]

Regulator Topology

Voltage - Output

Current - Output

Frequency - Switching

Utilized IC / Part

Supplied Contents

Main Purpose

Outputs and Type

Board Type

Supplier Device Package

Operating Temperature [Min]

Operating Temperature [Max]

Output Type

Output Configuration

Mounting Type

Synchronous Rectifier

Function

Package / Case

Voltage - Input (Min) [Min]

Voltage - Input (Max) [Max]

Number of Outputs

Voltage - Output (Min/Fixed)

Topology

Voltage - Output (Max) [Max]

Output Type

Microchip Technology

MIC33050-SYHL-EV

2.7 V

5.5 V

Buck

3.3 V

600 mA

4 MHz

MIC33050

Board(s)

DC/DC, Step Down

Non-Isolated

Fully Populated

Microchip Technology

MIC33050-CYHL-EV

2.7 V

5.5 V

Buck

1 V

600 mA

4 MHz

MIC33050

Board(s)

DC/DC, Step Down

Non-Isolated

Fully Populated

Microchip Technology

MIC33050-SYHL-TR

600 mA

4 MHz

12-MLF™ (3x3)

-40 °C

125 ¯C

1.81 mOhm

Positive

Surface Mount

Step-Down

12-MLF®, 12-VFDFN Exposed Pad

2.7 V

5.5 V

3.3 V

Buck

Microchip Technology

MIC33050-CYHL-TR

600 mA

4 MHz

12-MLF™ (3x3)

-40 °C

125 ¯C

1.81 mOhm

Positive

Surface Mount

Step-Down

12-MLF®, 12-VFDFN Exposed Pad

2.7 V

5.5 V

1 V

Buck

Microchip Technology

MIC33050-AYHL-TR

600 mA

4 MHz

12-MLF™ (3x3)

-40 °C

125 ¯C

Positive

Surface Mount

Step-Down

12-MLF®, 12-VFDFN Exposed Pad

2.7 V

5.5 V

0.4 V

Buck

4.9 V

Adjustable

Microchip Technology

MIC33050-4YHL-TR

600 mA

4 MHz

12-MLF™ (3x3)

-40 °C

125 ¯C

1.81 mOhm

Positive

Surface Mount

Step-Down

12-MLF®, 12-VFDFN Exposed Pad

2.7 V

5.5 V

1.2 V

Buck

Microchip Technology

MIC33050-AYHL-T5

600 mA

4 MHz

12-MLF™ (3x3)

-40 °C

125 ¯C

Positive

Surface Mount

Step-Down

12-MLF®, 12-VFDFN Exposed Pad

2.7 V

5.5 V

0.4 V

Buck

4.9 V

Adjustable

Microchip Technology

MIC33050-GYHL-EV

2.7 V

5.5 V

Buck

1.8 V

600 mA

4 MHz

MIC33050

Board(s)

DC/DC, Step Down

Non-Isolated

Fully Populated

Microchip Technology

MIC33050-4YHL-EV

2.7 V

5.5 V

Buck

1.2 V

600 mA

4 MHz

MIC33050

Board(s)

DC/DC, Step Down

Non-Isolated

Fully Populated

Microchip Technology

MIC33050-GYHL-TR

600 mA

4 MHz

12-MLF™ (3x3)

-40 °C

125 ¯C

1.81 mOhm

Positive

Surface Mount

Step-Down

12-MLF®, 12-VFDFN Exposed Pad

2.7 V

5.5 V

1.8 V

Buck

Part	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Voltage - Output	Current - Output	Frequency - Switching	Utilized IC / Part	Supplied Contents	Main Purpose	Outputs and Type	Outputs and Type	Board Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Output Configuration	Mounting Type	Function	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output (Min/Fixed)	Topology	Voltage - Output (Max) [Max]	Output Type
Microchip Technology MIC33050-SYHL-EV	2.7 V	5.5 V	Buck	3.3 V	600 mA	4 MHz	MIC33050	Board(s)	DC/DC, Step Down	Non-Isolated	1	Fully Populated
Microchip Technology MIC33050-CYHL-EV	2.7 V	5.5 V	Buck	1 V	600 mA	4 MHz	MIC33050	Board(s)	DC/DC, Step Down	Non-Isolated	1	Fully Populated
Microchip Technology MIC33050-SYHL-TR					600 mA	4 MHz							12-MLF™ (3x3)	-40 °C	125 ¯C	1.81 mOhm	Positive	Surface Mount	Step-Down	12-MLF®, 12-VFDFN Exposed Pad	2.7 V	5.5 V	1	3.3 V	Buck
Microchip Technology MIC33050-CYHL-TR					600 mA	4 MHz							12-MLF™ (3x3)	-40 °C	125 ¯C	1.81 mOhm	Positive	Surface Mount	Step-Down	12-MLF®, 12-VFDFN Exposed Pad	2.7 V	5.5 V	1	1 V	Buck
Microchip Technology MIC33050-AYHL-TR					600 mA	4 MHz							12-MLF™ (3x3)	-40 °C	125 ¯C		Positive	Surface Mount	Step-Down	12-MLF®, 12-VFDFN Exposed Pad	2.7 V	5.5 V	1	0.4 V	Buck	4.9 V	Adjustable
Microchip Technology MIC33050-4YHL-TR					600 mA	4 MHz							12-MLF™ (3x3)	-40 °C	125 ¯C	1.81 mOhm	Positive	Surface Mount	Step-Down	12-MLF®, 12-VFDFN Exposed Pad	2.7 V	5.5 V	1	1.2 V	Buck
Microchip Technology MIC33050-AYHL-T5					600 mA	4 MHz							12-MLF™ (3x3)	-40 °C	125 ¯C		Positive	Surface Mount	Step-Down	12-MLF®, 12-VFDFN Exposed Pad	2.7 V	5.5 V	1	0.4 V	Buck	4.9 V	Adjustable
Microchip Technology MIC33050-GYHL-EV	2.7 V	5.5 V	Buck	1.8 V	600 mA	4 MHz	MIC33050	Board(s)	DC/DC, Step Down	Non-Isolated	1	Fully Populated
Microchip Technology MIC33050-4YHL-EV	2.7 V	5.5 V	Buck	1.2 V	600 mA	4 MHz	MIC33050	Board(s)	DC/DC, Step Down	Non-Isolated	1	Fully Populated
Microchip Technology MIC33050-GYHL-TR					600 mA	4 MHz							12-MLF™ (3x3)	-40 °C	125 ¯C	1.81 mOhm	Positive	Surface Mount	Step-Down	12-MLF®, 12-VFDFN Exposed Pad	2.7 V	5.5 V	1	1.8 V	Buck

MIC33050-AYHL-T5

Deep-Dive with AI

MIC33050-AYHL-T5

Deep-Dive with AI

Pricing

Description

MIC33050 Series

Documents

Datasheet

Technical Specifications

MIC33050 Series
