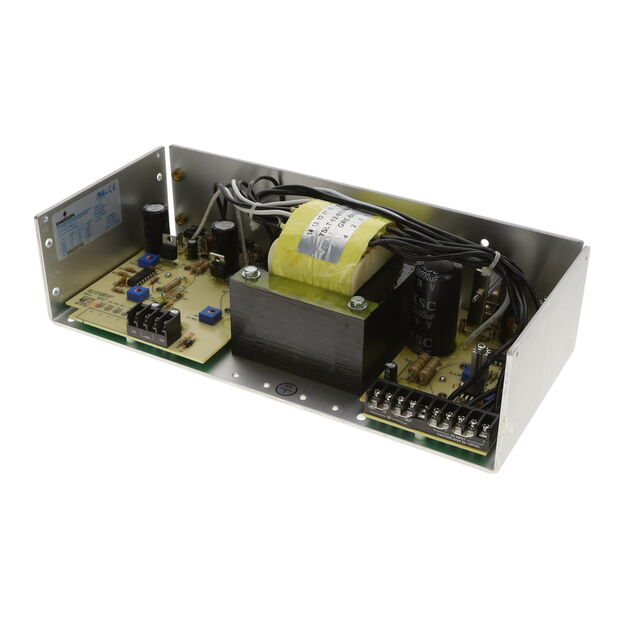

SLT12-61818-12T

SolaHD

AC/DC CONVERTER 5V +/-12V 73W

Search across all available documentation for this part.

SolaHD

AC/DC CONVERTER 5V +/-12V 73W

Technical Specifications

Parameters and characteristics for this part

Specification	SLT12-61818-12T

Applications	ITE (Commercial)
Approval Agency	CSA, cURus
Current - Output 1	6 A
Current - Output 2	1.8 A
Current - Output 3	1.8 A
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	3
Power (Watts)	73 W
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V

Part	Mounting Type	Features	Applications	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Voltage - Output 3	Number of Outputs	Voltage - Output 2	Current - Output 1	Power (Watts)	Current - Output 2	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Output 3
SolaHD SLT12-31010-12T	Chassis Mount	Adjustable Output Remote Sense	ITE (Commercial)	5 V	240 VAC	100 VAC	CSA cURus	-12 V	3	12 V	3 A	39 W	1 A	101.6 mm	63.5 mm	10.25 "	2.5 in	4 "	260.4 mm	Open Frame
SolaHD SLT12-61818-12T	Chassis Mount	Adjustable Output Remote Sense	ITE (Commercial)	5 V	240 VAC	100 VAC	CSA cURus	-12 V	3	12 V	6 A	73 W	1.8 A							Open Frame	1.8 A
SolaHD SLT12-20404-12T	Chassis Mount	Adjustable Output Remote Sense	ITE (Commercial)	5 V	240 VAC	100 VAC	CSA cURus	-12 V	3	12 V	2 A	106 W	4 A	101.6 mm	41.1 mm	6.5 in	1.62 in	4 "	165.1 mm	Open Frame	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 5V 12V -12V 100 ~ 240 VAC Input
