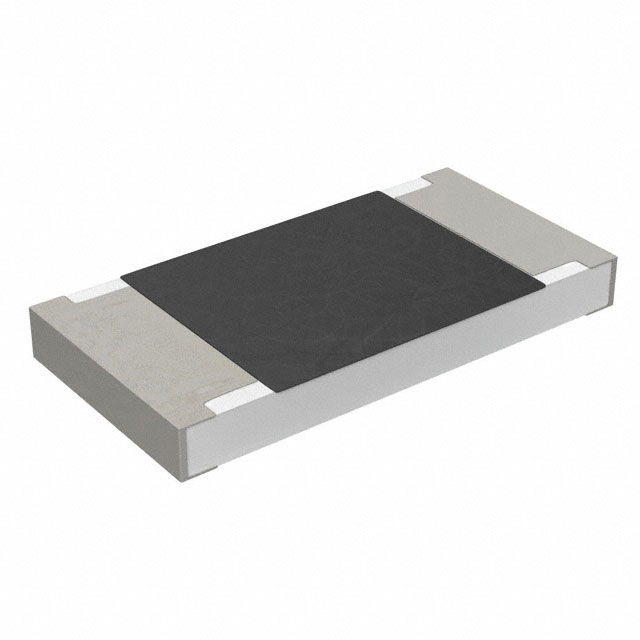

RNCF2512TKY100R
ActiveStackpole Electronics Inc
RES SMD 100 OHM 0.01% 1/2W 2512
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RNCF2512TKY100R
ActiveStackpole Electronics Inc
RES SMD 100 OHM 0.01% 1/2W 2512
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RNCF2512TKY100R |
|---|---|
| Composition | Thin Film |
| Features | Automotive AEC-Q200 |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Ratings | AEC-Q200 |
| Resistance | 100 Ohms |
| Size / Dimension [x] | 6.3 mm |
| Size / Dimension [x] | 0.248 in |
| Size / Dimension [y] | 0.122 in |
| Size / Dimension [y] | 3.1 mm |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 5 ppm/°C |
| Tolerance | 0.01 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.39 | |
| 10 | $ 1.64 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.08 | |||
| 500 | $ 0.91 | |||
| Digi-Reel® | 1 | $ 2.39 | ||
| 10 | $ 1.64 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.08 | |||
| 500 | $ 0.91 | |||
| Tape & Reel (TR) | 1000 | $ 0.91 | ||
Description
General part information
RNCF2512T Series
100 Ohms ±0.01% 0.5W, 1/2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thin Film
