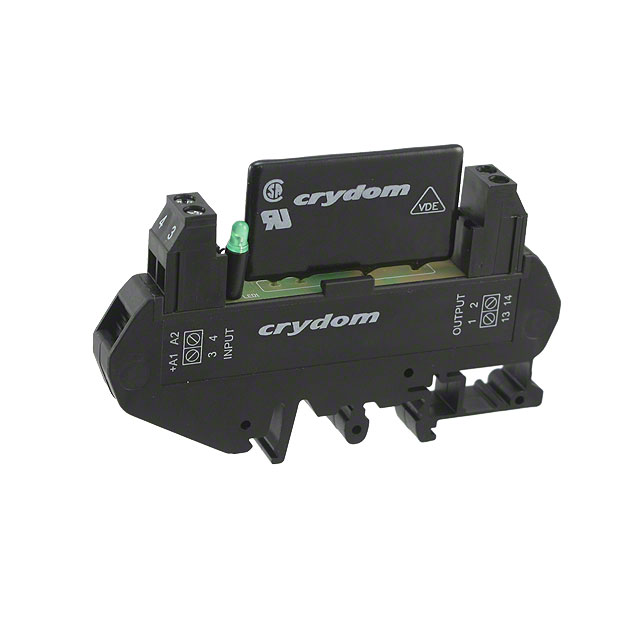

DRA1-CMX60D10

Active

Sensata-Crydom

SSR RELAY SPST-NO 8A 1-60V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 8A 1-60V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Load Current	Approval Agency	Termination Style	Voltage - Input [Min]	Voltage - Input [Max]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Min]	Voltage - Load [Max]	On-State Resistance (Max) [Max]
Sensata-Crydom DRA1-CMX60D5	DIN Rail	Module	5 A	CE cURus	Screw Terminal	3 V	10 V	DC	-20 C	80 C	1 V	60 V	100 mOhms
Sensata-Crydom DRA1-CMX100D10	DIN Rail	Module	8 A	CE cURus	Screw Terminal	3 V	10 V	DC	-20 C	80 C	1 V	100 V	10 mOhms
Sensata-Crydom DRA1-CMX60D10	DIN Rail	Module	8 A	CE cURus	Screw Terminal	3 V	10 V	DC	-20 C	80 C	1 V	60 V	18 mOhms
Sensata-Crydom DRA1-CXE240D5R	DIN Rail	Module	5 A	CE cURus	Screw Terminal	15 V	32 V	AC	-20 C	80 C	12 V	280 V
Sensata-Crydom DRA1-CX241R	DIN Rail	Module	5 A	CE cURus	Screw Terminal	3 V	15 V	AC	-20 C	80 C
Sensata-Crydom DRA1-CMXE100D10	DIN Rail	Module	8 A	CE cURus	Screw Terminal	20 VDC	28 V	DC	-20 C	80 C	1 V	100 V	10 mOhms
Sensata-Crydom DRA1-CMXE200D3	DIN Rail	Module	3 A	CE cURus	Screw Terminal	20 VDC	28 V	DC	-20 C	80 C	1 V	200 V	200 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
