35HDRANN
ActiveSwitchcraft Inc.
CONN PLUG STEREO 3.5MM RA 3COND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35HDRANN
ActiveSwitchcraft Inc.
CONN PLUG STEREO 3.5MM RA 3COND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 35HDRANN | 35HDRA Series |
|---|---|---|
| - | - | |
| Actual Diameter [diameter] | 0.138 " | 0.138 " |
| Actual Diameter [diameter] | 3.5 mm | 3.5 mm |
| Body Color | Silver | Gold, Black, Silver |
| Body Material | Brass | Brass |
| Cable Opening | - | 0.175 in |
| Cable Opening | - | 4.44 mm |
| Cable Opening [custom] | 7.37 mm | 6.35 - 7.37 mm |
| Cable Opening [custom] | 0.29 in | 0.25 - 0.29 in |
| Connector Type | Phone Plug | Phone Plug |
| Contact Material | Brass | Brass |
| Contact Material - Plating | - | Gold |
| Contact Material - Plating [custom] | Nickel | Nickel |
| Current Rating (Amps) | 4 A | 4 A |
| Gender | Male | Male |
| Housing Material | Brass | Brass |

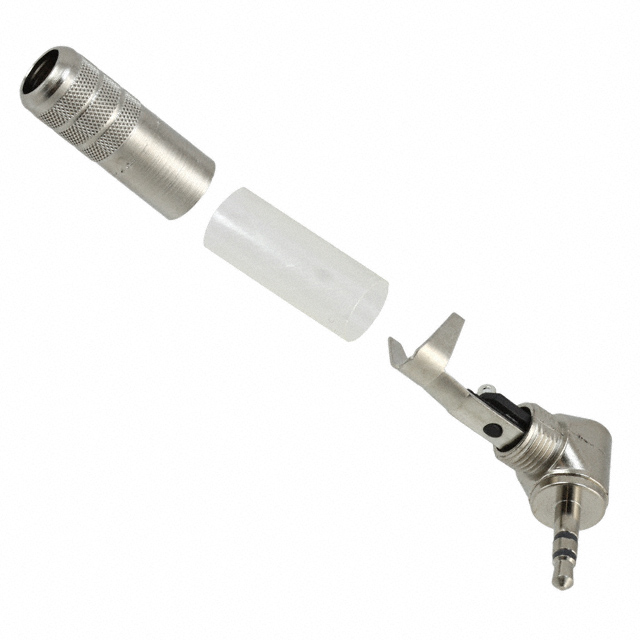

| Includes | 1 Connector, 1 Insulator Tube, 1 Handle | 1 Connector, 1 Insulator Tube, 1 Handle |
| Industry Recognized Mating Diameter | 0.141 " | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm | 3.5 mm |
| Internal Switch(s) | False | False |
| Mating Length/Depth | 13 mm | 13 - 14.2 mm |
| Mating Length/Depth | 0.51 in | 0.51 - 0.56 in |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Operating Temperature | - | 0 °C |
| Operating Temperature | - | 66 °C |
| Shielding | Shielded | Shielded |
| Signal Lines | Stereo | Stereo |
| Termination | Solder | Solder |
35HDRA Series
PHONE CONNECTORS 3.5MM R/A PLUG BLACK/GOLD
| Part | Current Rating (Amps) | Contact Material - Plating [custom] | Internal Switch(s) | Connector Type | Contact Material | Cable Opening [diameter] | Cable Opening [diameter] | Signal Lines | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Mounting Type | Housing Material | Mating Length/Depth | Mating Length/Depth | Includes | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Body Color | Actual Diameter [diameter] | Actual Diameter [diameter] | Body Material | Termination | Shielding | Contact Material - Plating [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 35HDRABAUS | 4 A | Gold | Phone Plug | Brass | 0.175 in | 4.44 mm | Stereo | 0 °C | 66 °C | Male | 0.141 " | 0.125 " | 3.5 mm | Free Hanging (In-Line), Right Angle | Brass | 14.2 mm | 0.56 in | 1 Connector, 1 Handle, 1 Insulator Tube | 3 | 3 | Black, Gold | 0.138 " | 3.5 mm | Brass | Solder | Shielded | ||||
Switchcraft Inc. 35HDRANNS | 4 A | Phone Plug | Brass | 0.175 in | 4.44 mm | Stereo | 0 °C | 66 °C | Male | 0.141 " | 0.125 " | 3.5 mm | Free Hanging (In-Line), Right Angle | Brass | 13 mm | 0.51 in | 1 Connector, 1 Handle, 1 Insulator Tube | 3 | 3 | Silver | 0.138 " | 3.5 mm | Brass | Solder | Shielded | Nickel | ||||
Switchcraft Inc. 35HDRANAU | 4 A | Gold | Phone Plug | Brass | Stereo | 0 °C | 66 °C | Male | 0.141 " | 0.125 " | 3.5 mm | Free Hanging (In-Line), Right Angle | Brass | 13 mm | 0.51 in | 1 Connector, 1 Handle, 1 Insulator Tube | 3 | 3 | Silver | 0.138 " | 3.5 mm | Brass | Solder | Shielded | 7.37 mm | 0.29 in | ||||
Switchcraft Inc. 35HDRANAUS | 4 A | Gold | Phone Plug | Brass | 0.175 in | 4.44 mm | Stereo | 0 °C | 66 °C | Male | 0.141 " | 0.125 " | 3.5 mm | Free Hanging (In-Line), Right Angle | Brass | 13 mm | 0.51 in | 1 Connector, 1 Handle, 1 Insulator Tube | 3 | 3 | Silver | 0.138 " | 3.5 mm | Brass | Solder | Shielded | ||||
Switchcraft Inc. 35HDRABN | ||||||||||||||||||||||||||||||
Switchcraft Inc. 35HDRABAU | 4 A | Gold | Phone Plug | Brass | Stereo | 0 °C | 66 °C | Male | 0.141 " | 0.125 " | 3.5 mm | Free Hanging (In-Line), Right Angle | Brass | 14.2 mm | 0.56 in | 1 Connector, 1 Handle, 1 Insulator Tube | 3 | 3 | Black, Gold | 0.138 " | 3.5 mm | Brass | Solder | Shielded | 6.35 mm | 0.25 in | ||||
Switchcraft Inc. 35HDRANN | 4 A | Phone Plug | Brass | Stereo | Male | 0.141 " | 0.125 " | 3.5 mm | Free Hanging (In-Line), Right Angle | Brass | 13 mm | 0.51 in | 1 Connector, 1 Handle, 1 Insulator Tube | 3 | 3 | Silver | 0.138 " | 3.5 mm | Brass | Solder | Shielded | Nickel | 7.37 mm | 0.29 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.40 | |
| 10 | $ 19.58 | |||
| 25 | $ 17.74 | |||
| 50 | $ 16.49 | |||
| 100 | $ 15.35 | |||
| 300 | $ 13.77 | |||
| 500 | $ 13.12 | |||
Description
General part information
35HDRA Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder
