35HDRANAU

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM RA 3COND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

35HDRANAU

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM RA 3COND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.74

Description

General part information

35HDRA Series

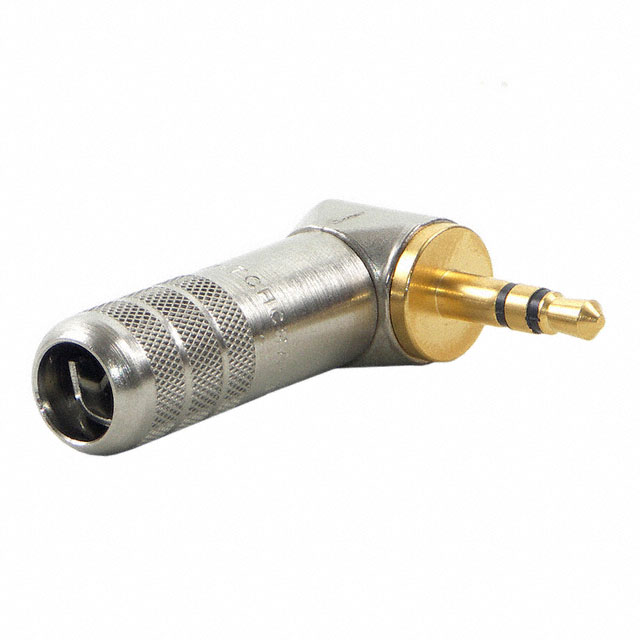

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	35HDRANAU	35HDRA Series

	-	-
Actual Diameter [diameter]	0.138 "	0.138 "
Actual Diameter [diameter]	3.5 mm	3.5 mm
Body Color	Silver	Gold, Black, Silver
Body Material	Brass	Brass
Cable Opening	-	0.175 in
Cable Opening	-	4.44 mm
Cable Opening [custom]	7.37 mm	6.35 - 7.37 mm
Cable Opening [custom]	0.29 in	0.25 - 0.29 in
Connector Type	Phone Plug	Phone Plug
Contact Material	Brass	Brass
Contact Material - Plating	-	Nickel
Contact Material - Plating [custom]	Gold	Gold
Current Rating (Amps)	4 A	4 A
Gender	Male	Male
Housing Material	Brass	Brass
Includes	1 Connector, 1 Insulator Tube, 1 Handle	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Internal Switch(s)	False	False
Mating Length/Depth	13 mm	13 - 14.2 mm
Mating Length/Depth	0.51 in	0.51 - 0.56 in
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Operating Temperature [Max]	66 °C	66 °C
Operating Temperature [Min]	0 °C	0 °C
Shielding	Shielded	Shielded
Signal Lines	Stereo	Stereo
Termination	Solder	Solder

35HDRA Series

PHONE CONNECTORS 3.5MM R/A PLUG BLACK/GOLD

Part	Current Rating (Amps)	Contact Material - Plating [custom]	Connector Type	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Signal Lines	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Mounting Type	Housing Material	Mating Length/Depth	Mating Length/Depth	Includes	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Material	Termination	Shielding	Contact Material - Plating [custom]	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. 35HDRABAUS	4 A	Gold	Phone Plug	Brass	0.175 in	4.44 mm	Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	14.2 mm	0.56 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Black, Gold	0.138 "	3.5 mm	Brass	Solder	Shielded
Switchcraft Inc. 35HDRANNS	4 A		Phone Plug	Brass	0.175 in	4.44 mm	Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	13 mm	0.51 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Silver	0.138 "	3.5 mm	Brass	Solder	Shielded	Nickel
Switchcraft Inc. 35HDRANAU	4 A	Gold	Phone Plug	Brass			Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	13 mm	0.51 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Silver	0.138 "	3.5 mm	Brass	Solder	Shielded		7.37 mm	0.29 in
Switchcraft Inc. 35HDRANAUS	4 A	Gold	Phone Plug	Brass	0.175 in	4.44 mm	Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	13 mm	0.51 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Silver	0.138 "	3.5 mm	Brass	Solder	Shielded
Switchcraft Inc. 35HDRABN
Switchcraft Inc. 35HDRABAU	4 A	Gold	Phone Plug	Brass			Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	14.2 mm	0.56 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Black, Gold	0.138 "	3.5 mm	Brass	Solder	Shielded		6.35 mm	0.25 in
Switchcraft Inc. 35HDRANN	4 A		Phone Plug	Brass			Stereo			Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	13 mm	0.51 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Silver	0.138 "	3.5 mm	Brass	Solder	Shielded	Nickel	7.37 mm	0.29 in
