B32778J0207K000

Active

EPCOS - TDK Electronics

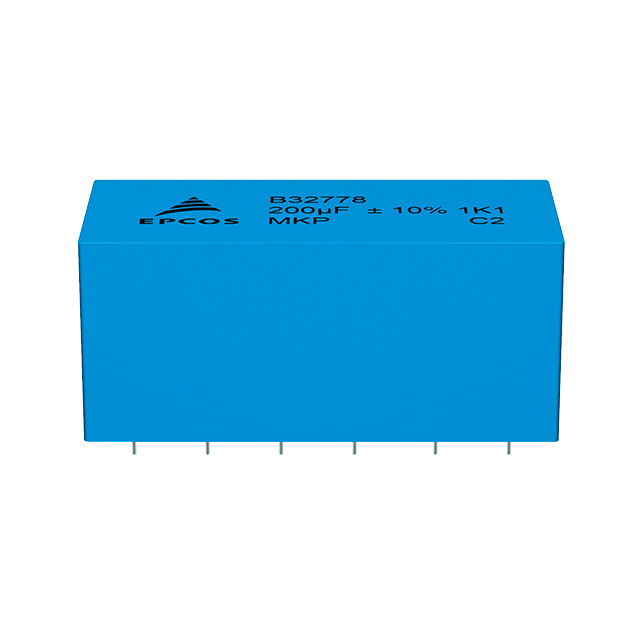

CAP FILM 200UF 10% 1.1KVDC 12DIP

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

CAP FILM 200UF 10% 1.1KVDC 12DIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B32778J0207K000	B32778J Series

Applications	DC Link, DC Filtering	DC Link, DC Filtering
Capacitance	-	120 - 480 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	1.4 mOhms	0.9 - 1.7 mOhms
Features	Long Life	Long Life
Height - Seated (Max) [Max] [z]	2.283 in	2.283 in
Height - Seated (Max) [Max] [z]	58 mm	58 mm
Lead Spacing	52.5 mm	52.5 mm
Lead Spacing	2.067 in	2.067 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	12-DIP	12-DIP
Size / Dimension [x]	2.264 in	2.264 in
Size / Dimension [x]	57.5 mm	57.5 mm
Size / Dimension [y]	130 mm	130 mm
Size / Dimension [y]	5.118 "	5.118 "
Termination	PC Pins	PC Pins
Tolerance	10 %	10 %
Voltage Rating - DC	1100 V	450 - 1300 V
Voltage Rating - DC	1.1 kV	1.1 - 1.3 kV

CAP FILM 480UF 10% 450VDC 12-DIP

Part	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Termination	Tolerance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Package / Case	Dielectric Material	Applications	Features	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Voltage Rating - DC
EPCOS - TDK Electronics B32778J4487K000	450 V	2.264 in	130 mm	57.5 mm	5.118 "	PC Pins	10 %	Through Hole	-40 °C	105 ░C	52.5 mm	2.067 in	12-DIP	Metallized, Polypropylene (PP)	DC Filtering, DC Link	Long Life	480 µF	2.283 in	58 mm	0.9 mOhms
EPCOS - TDK Electronics B32778J0207K000	1100 V	2.264 in	130 mm	57.5 mm	5.118 "	PC Pins	10 %	Through Hole	-40 °C	105 ░C	52.5 mm	2.067 in	12-DIP	Metallized, Polypropylene (PP)	DC Filtering, DC Link	Long Life		2.283 in	58 mm	1.4 mOhms	1.1 kV
EPCOS - TDK Electronics B32778J8277K000	800 V	2.264 in	130 mm	57.5 mm	5.118 "	PC Pins	10 %	Through Hole	-40 °C	105 ░C	52.5 mm	2.067 in	12-DIP	Metallized, Polypropylene (PP)	DC Filtering, DC Link	Long Life	270 µF	2.283 in	58 mm	1.2 mOhms
EPCOS - TDK Electronics B32778J1127K000	1300 V	2.264 in	130 mm	57.5 mm	5.118 "	PC Pins	10 %	Through Hole	-40 °C	105 ░C	52.5 mm	2.067 in	12-DIP	Metallized, Polypropylene (PP)	DC Filtering, DC Link	Long Life	120 µF	2.283 in	58 mm	1.7 mOhm	1.3 kV
