MS3108R18-1S

Active

ITT Cannon, LLC

CONN PLUG FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108R18-1S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	1
Shell Size - Insert [Min]	18
Voltage Rating	250 VDC, 200 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Qualification	Shell Size - Insert	Voltage Rating	Features	Orientation	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Mounting Type	Grade	Shell Finish	Color	Ingress Protection	Primary Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions
ITT Cannon, LLC MS3108R181S
ITT Cannon, LLC MS3108R18-11S	-55 °C	125 °C	Aluminum Alloy	MIL-DTL-5015	18-11	500 VAC 700 VDC	Backshell Coupling Nut	N	Female Sockets Plug	Silver	41 A	Free Hanging (In-Line) Right Angle	Military	Olive Drab Cadmium	Olive Drab	Environment Resistant	Metal
ITT Cannon, LLC MS3108R18-1S	-55 °C	125 °C	Aluminum Alloy	MIL-DTL-5015		200 VAC 250 VDC	Backshell Coupling Nut	N	Female Sockets Plug	Silver	22 A	Free Hanging (In-Line) Right Angle	Military	Olive Drab Cadmium	Olive Drab	Environment Resistant	Metal	1	18	10
ITT Cannon, LLC MS3108R18-4S	-55 °C	125 °C	Aluminum Alloy	MIL-DTL-5015	18-4	900 VAC 1250 VDC	Backshell Coupling Nut	N	Female Sockets Plug	Silver	22 A	Free Hanging (In-Line) Right Angle	Military	Olive Drab Cadmium	Olive Drab	Environment Resistant	Metal			4
ITT Cannon, LLC MS3108R18-4SW	-55 °C	125 °C	Aluminum Alloy	MIL-DTL-5015	18-4	900 VAC 1250 VDC	Backshell Coupling Nut	W	Female Sockets Plug	Silver	22 A	Free Hanging (In-Line) Right Angle	Military	Olive Drab Cadmium	Olive Drab	Environment Resistant	Metal			4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 105.17

General part information

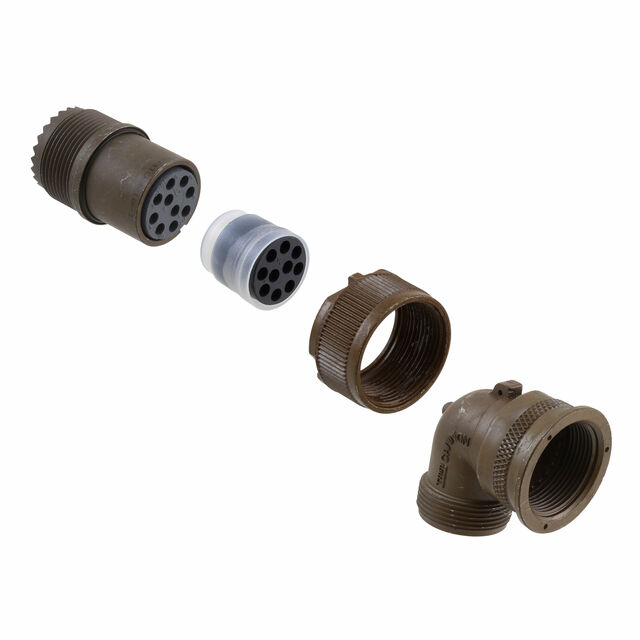

10 Position Circular Connector Plug, Female Sockets Solder Cup
