M20-9750346

Active

Harwin Inc.

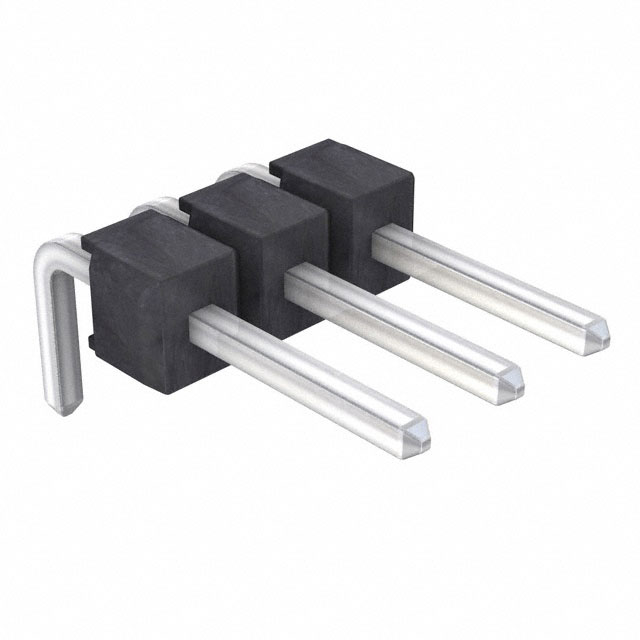

CONN, R/A HEADER, 3POS, 1ROW, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003

M20-9750346

Active

Harwin Inc.

CONN, R/A HEADER, 3POS, 1ROW, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-9750346

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M20-975 Series

Part	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Positions Loaded	Contact Finish - Mating	Insulation Height	Insulation Height	Style	Contact Type	Contact Finish - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Shape	Current Rating (Amps)	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Number of Positions	Insulation Material	Material Flammability Rating	Contact Material	Termination	Contact Length - Post	Contact Length - Post	Connector Type	Number of Positions
Harwin Inc. M20-9750242	0.228 in	5.8 mm	Through Hole Right Angle	All	Gold	0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded	2	Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header
Harwin Inc. M20-9751046	0.228 in	5.8 mm	Through Hole Right Angle	All		0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded	10	Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header
Harwin Inc. M20-9750346	0.228 in	5.8 mm	Through Hole Right Angle	All		0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded		Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header
Harwin Inc. M20-9751646	0.228 in	5.8 mm	Through Hole Right Angle	All		0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded		Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header	16
Harwin Inc. M20-9750746	0.228 in	5.8 mm	Through Hole Right Angle	All		0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded	7	Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header
Harwin Inc. M20-9750946	0.228 in	5.8 mm	Through Hole Right Angle	All		0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded	9	Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header
Harwin Inc. M20-9751246	0.228 in	5.8 mm	Through Hole Right Angle	All		0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded	12	Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header
Harwin Inc. M20-9753646	0.228 in	5.8 mm	Through Hole Right Angle	All		0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded	36	Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header
Harwin Inc. M20-9754046	0.228 in	5.8 mm	Through Hole Right Angle	All		0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded	40	Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header
Harwin Inc. M20-9750446	0.228 in	5.8 mm	Through Hole Right Angle	All		0.1 in	2.54 mm	Board to Board Cable	Male Pin	Tin	Black	0.1 in	2.54 mm	1	Square	3 A	Push-Pull	-40 °C	105 ░C	Unshrouded	4	Nylon 6T Polyamide (PA6T)	UL94 V-0	Brass	Solder	0.118 in	3 mm	Cuttable Header

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.17
		10	$ 0.13
		100	$ 0.10
		500	$ 0.08
		1000	$ 0.08
		5000	$ 0.06
		10000	$ 0.06
Newark	Each	100	$ 0.09
		500	$ 0.08
		1000	$ 0.08
		2500	$ 0.07
		10000	$ 0.06

Description

General part information

M20-975 Series

Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
