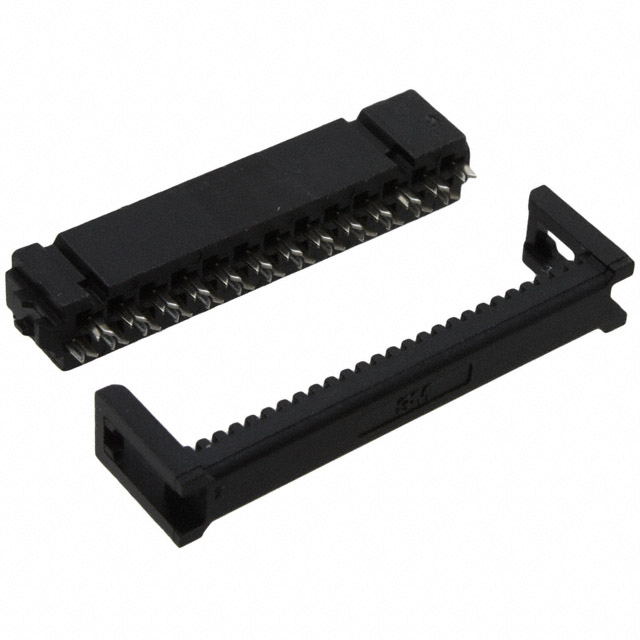

D89126-0031HK
Active3M (TC)
IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 26 CONTACTS, CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
D89126-0031HK
Active3M (TC)
IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 26 CONTACTS, CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D89126-0031HK |
|---|---|
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Type | Female Socket |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.36 | |
| 10 | $ 1.80 | |||
| 25 | $ 1.62 | |||
| 50 | $ 1.50 | |||
| 100 | $ 1.39 | |||
| 250 | $ 1.26 | |||
| 500 | $ 1.17 | |||
| 1000 | $ 1.09 | |||
| 2500 | $ 0.99 | |||
Description
General part information
D89126 Series
The D89 series IDC Ribbon Cable Socket with phosphor bronze contacts and a glass-filled polyester insulator. The double recessed cover for cable terminating from either side virtually eliminating the need for single recessed cover connectors.
