ESD202B1CSP01005XTSA1
ActiveInfineon Technologies

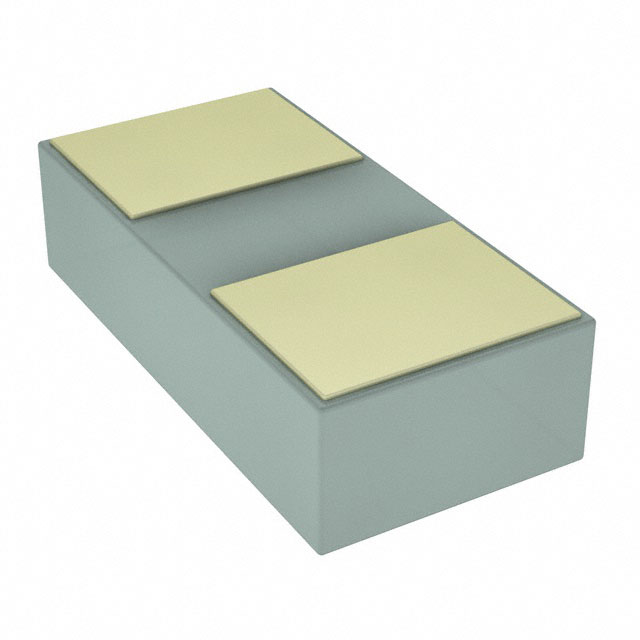

DIODE, ESD PROTECTION, 5.5V, WLL-2-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESD202B1CSP01005XTSA1
ActiveInfineon Technologies
DIODE, ESD PROTECTION, 5.5V, WLL-2-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESD202B1CSP01005XTSA1 |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 6.5 pF |
| Current - Peak Pulse (10/1000µs) | 3 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 01005 |
| Package / Case | 0402 Metric |
| Power - Peak Pulse | 36 W |
| Power Line Protection | False |
| Supplier Device Package | P/PG-WLL-2-2 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp | 12 V |
| Voltage - Reverse Standoff (Typ) | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.05 | |||
| 100 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| 2000 | $ 0.02 | |||
| 5000 | $ 0.02 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.05 | |||
| 100 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| 2000 | $ 0.02 | |||
| 5000 | $ 0.02 | |||
| Tape & Reel (TR) | 15000 | $ 0.01 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.10 | |
| 10 | $ 0.05 | |||
| 25 | $ 0.04 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.02 | |||
| 250 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
Description
General part information
ESD202 Series
Miniaturized Low Capacitance Bi-directional ESD / Transient Protection Diode
