TC78H660FTG,EL
ActiveToshiba Semiconductor and Storage
2-CH BRUSHED MOTOR DRIVERS AT 20
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC78H660FTG,EL
ActiveToshiba Semiconductor and Storage
2-CH BRUSHED MOTOR DRIVERS AT 20
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC78H660FTG,EL |
|---|---|
| Applications | General Purpose |
| Current - Output | 2 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Motor Type - AC, DC | Brushed DC |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (4) |

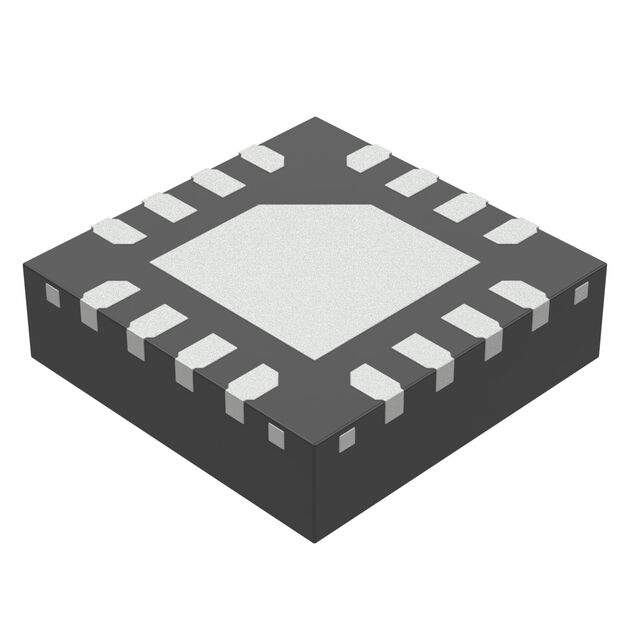

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| Technology | DMOS |
| Voltage - Load [Max] | 16 V |
| Voltage - Load [Min] | 2.5 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.04 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.67 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.51 | |||
| Digi-Reel® | 1 | $ 1.04 | ||
| 10 | $ 0.75 | |||
| 25 | $ 0.67 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.51 | |||
| Tape & Reel (TR) | 4000 | $ 0.49 | ||
| 8000 | $ 0.48 | |||
| 12000 | $ 0.47 | |||
| 20000 | $ 0.46 | |||
Description
General part information
TC78H660 Series
Motor Driver DMOS 16-VQFN (3x3)
