D3793-5202-AR

Active

3M (TC)

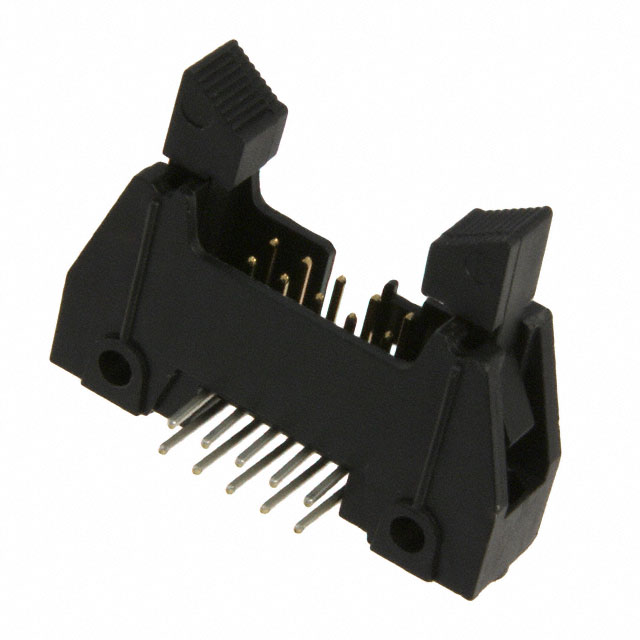

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +1

D3793-5202-AR

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D3793-5202-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Color	Black
Insulation Height	0.34 in
Insulation Height	8.64 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

D3793 Series

Part	Contact Material	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shrouding	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Termination	Current Rating (Amps)	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Color	Contact Shape	Number of Positions	Style	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating [x]	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material
3M (TC) D3793-6302-AR	Brass	All	105 ░C	-55 °C	Through Hole	Shrouded - 4 Wall	0.652 in	16.56 mm	1 çm	39.4 çin	2.84 mm	0.112 in	Solder	1.75 A	17.27 mm	0.68 in	UL94 V-0	Black	Square	10	Board to Cable/Wire	Tin	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	10 çin	0.25 çm	Header	Male Pin	Gold	6.1 mm	0.24 in	2	2.54 mm	0.1 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
3M (TC) D3793-5202-AR	Brass	All	105 ░C	-55 °C	Through Hole Right Angle	Shrouded - 4 Wall			1 çm	39.4 çin	2.84 mm	0.112 in	Solder	1.75 A	8.64 mm	0.34 in	UL94 V-0	Black	Square	10	Board to Cable/Wire	Tin	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	10 çin	0.25 çm	Header	Male Pin	Gold	6.1 mm	0.24 in	2	2.54 mm	0.1 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
3M (TC) D3793-6002-AR	Brass	All	105 ░C	-55 °C	Through Hole	Shrouded - 4 Wall	0.652 in	16.56 mm	1 çm	39.4 çin	2.84 mm	0.112 in	Solder	1.75 A	17.27 mm	0.68 in	UL94 V-0	Black	Square	10	Board to Cable/Wire	Tin	0.1 in	2.54 mm	Push-Pull	10 çin	0.25 çm	Header	Male Pin	Gold	6.1 mm	0.24 in	2	2.54 mm	0.1 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
3M (TC) D3793-5002-AR	Brass	All	105 ░C	-55 °C	Through Hole Right Angle	Shrouded - 4 Wall			1 çm	39.4 çin	2.84 mm	0.112 in	Solder	1.75 A	8.64 mm	0.34 in	UL94 V-0	Black	Square	10	Board to Cable/Wire	Tin	0.1 in	2.54 mm	Push-Pull	10 çin	0.25 çm	Header	Male Pin	Gold	6.1 mm	0.24 in	2	2.54 mm	0.1 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.86
		10	$ 1.62
		80	$ 1.45
		450	$ 1.21
		1350	$ 1.03
		4950	$ 0.92
		10350	$ 0.90
Newark	Each	1	$ 3.46
		10	$ 3.37
		25	$ 3.29

Description

General part information

D3793 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Technical Data Sheet EN

Datasheet
