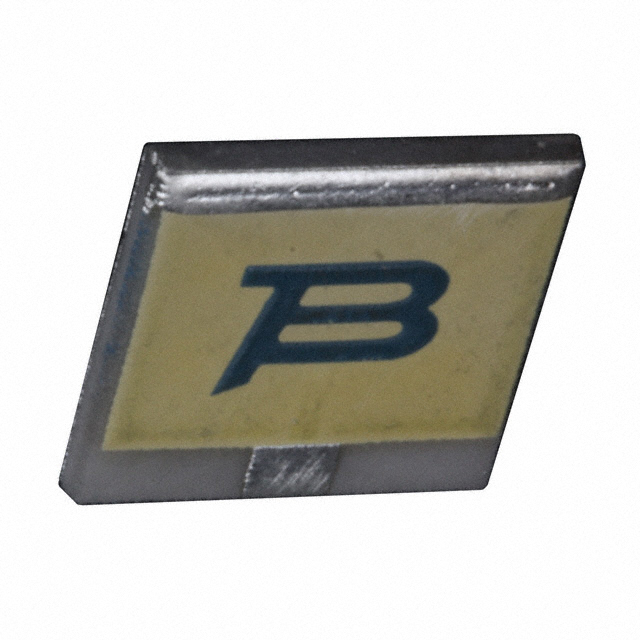

CHF2525CNT500LW
ObsoleteBourns Inc.
RES SMD 50 OHM 5% 40W 2525
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHF2525CNT500LW
ObsoleteBourns Inc.
RES SMD 50 OHM 5% 40W 2525
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHF2525CNT500LW |
|---|---|
| Composition | Thick Film |
| Features | RF, High Frequency |
| Height - Seated (Max) [Max] | 0.025 in |
| Height - Seated (Max) [Max] | 0.64 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2525 (6464 Metric) |
| Power (Watts) | 40 W |
| Resistance | 50 Ohms |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [x] | 0.25 " |
| Size / Dimension [y] | 6.35 mm |
| Size / Dimension [y] | 0.25 in |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CHF2525 Series
50 Ohms ±5% 40W Chip Resistor 2525 (6464 Metric) RF, High Frequency Thick Film
