310J101-16-CA006

Active

Cicoil

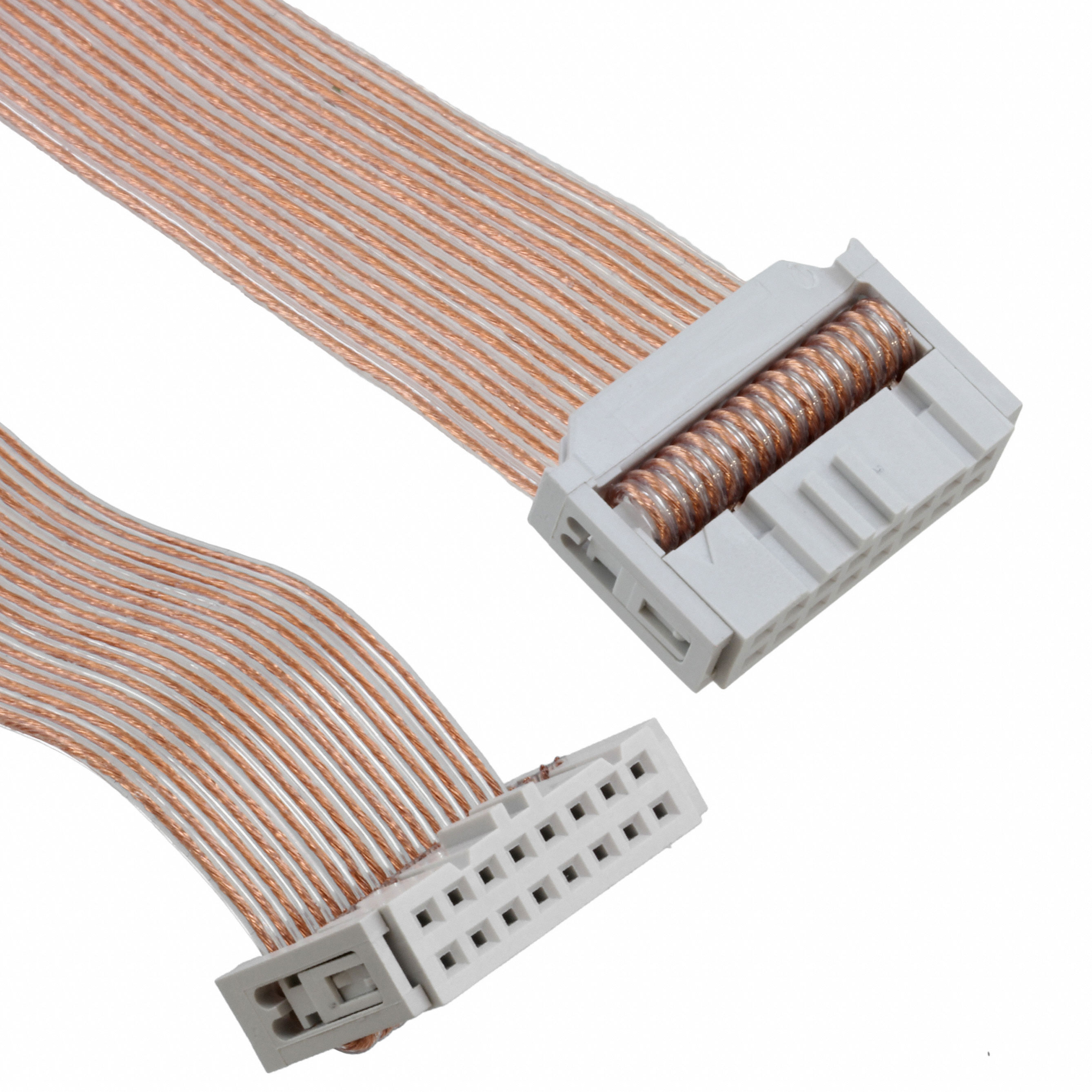

FLT RIB CBL .050" 28AWG 16C 6'

310J101-16-CA006

Active

Cicoil

FLT RIB CBL .050" 28AWG 16C 6'

Description Specifications Series Pricing CAD Documents

Description

General part information

310J101 Series

16 Position Cable Assembly Rectangular Socket to Socket 6.00' (1.83m)

Technical Specifications

Parameters and characteristics for this part

Specification	310J101-16-CA006

Cable Termination	IDC
Color	Clear, Ribbon
Connector Type	Socket to Socket
Length	6 ft
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 in
Pitch - Connector	0.1 in
Shielding	Unshielded

310J101 Series

Part	Ratings	Shielding	Length	Jacket Color	Wire Gauge	Ribbon Thickness	Number of Conductors	Operating Temperature (Max)	Operating Temperature (Min)	Cable Type	Jacket (Insulation) Material	Pitch	Length	Voltage	Ribbon Width	Conductor Material	Current Rating	Insulation Resistance	Pitch - Connector	Cable Termination	Pitch - Cable	Color	Number of Rows	Connector Type	Number of Positions
Cicoil 310J101-34	CE UL E324413	Unshielded	5 ft 12 in 50 ft 100 ft 500 ft	Clear	28 AWG	0.035 in	34	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in	Enter Number of Feet in Order Quantity	450 V	1.7 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-28-050	CE UL E324413	Unshielded	50 ft	Clear	28 AWG	0.035 in	28	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in		450 V	1.4 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-26-CA006		Unshielded	6 ft																0.1 in	IDC	0.05 in	Clear Ribbon	2	Socket to Socket	26
Cicoil 310J101-14	CE UL E324413	Unshielded	5 ft 10 ft 12 in 25 ft 50 ft 1000 ft	Clear	28 AWG	0.035 in	14	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in	Enter Number of Feet in Order Quantity	450 V	0.7 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-30-050	CE UL E324413	Unshielded	50 ft	Clear	28 AWG	0.035 in	30	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in		450 V	1.5 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-10-CA006		Unshielded	6 ft																0.1 in	IDC	0.05 in	Clear Ribbon	2	Socket to Socket	10
Cicoil 310J101-26	CE UL E324413	Unshielded	10 ft 12 in 25 ft 50 ft 100 ft 500 ft	Clear	28 AWG	0.035 in	26	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in	Enter Number of Feet in Order Quantity	450 V	1.3 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-16-CA006		Unshielded	6 ft																0.1 in	IDC	0.05 in	Clear Ribbon	2	Socket to Socket	16
Cicoil 310J101-50	CE UL E324413	Unshielded	5 ft 10 ft 12 in 50 ft 100 ft 200 ft	Clear	28 AWG	0.035 in	50	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in	Enter Number of Feet in Order Quantity	450 V	2.5 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-26-CA003		Unshielded	3 ft																0.1 in	IDC	0.05 in	Clear Ribbon	2	Socket to Socket	26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

310J101-16-CA006 | Datasheet
