RMA.00.250.NTM

Active

LEMO

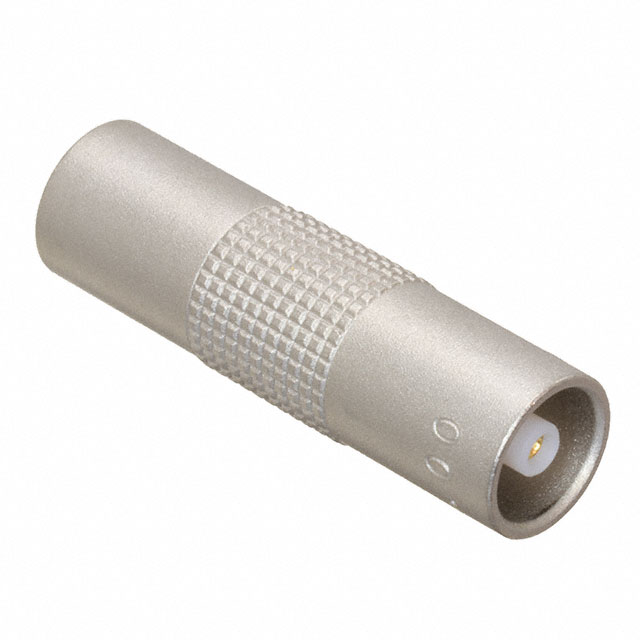

CONN ADAPT JACK-JACK NIM-CAMAC

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT JACK-JACK NIM-CAMAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RMA.00.250.NTM	RMA.00.250 Series

Adapter Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Nickel, Chrome
Body Material	Brass	Brass
Center Contact Material	Bronze	Bronze
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Jack, Female Socket	NIM-CAMAC CD/N 549 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Style	Straight	Straight

CONN ADAPT JACK-JACK NIM-CAMAC

Part	Adapter Series	Dielectric Material	Center Contact Plating	Center Gender	Style	Convert From (Adapter End)	Center Contact Material	Body Material	Impedance	Ingress Protection	Fastening Type	Mounting Type	Adapter Type	Body Finish	Conversion Type	Mating Cycles
LEMO RMA.00.250.NTM	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	Polytetrafluoroethylene (PTFE)	Gold	Female to Female	Straight	NIM-CAMAC CD/N 549 Jack, Female Socket	Bronze	Brass	50 Ohms	IP50	Push-Pull	Free Hanging (In-Line)	Jack to Jack	Nickel	Same Series	500
LEMO RMA.00.250.CTM	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	Polytetrafluoroethylene (PTFE)	Gold	Female to Female	Straight	NIM-CAMAC CD/N 549 Jack, Female Socket	Bronze	Brass	50 Ohms	IP50	Push-Pull	Free Hanging (In-Line)	Jack to Jack	Chrome	Same Series	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Jack, Female Socket To NIM-CAMAC CD/N 549 Jack, Female Socket 50 Ohms
