M1DXA-5036J

Active

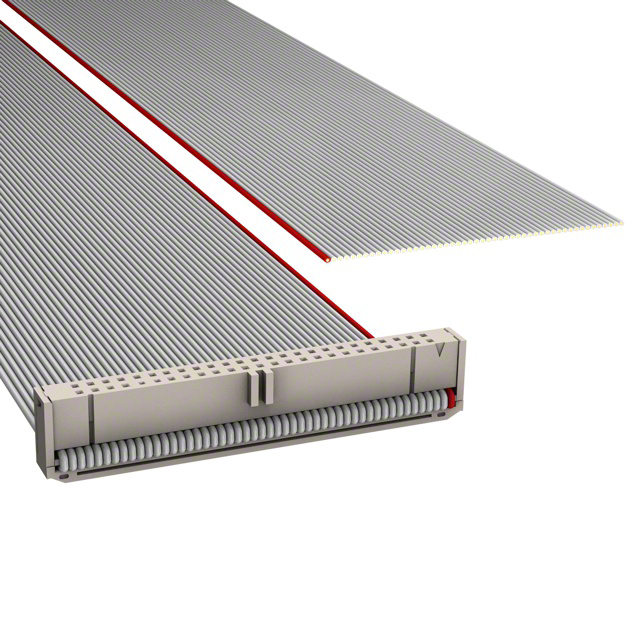

IDC CABLE - MKR50A/MC50G/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet 891 Series Datasheet +3

M1DXA-5036J

Active

IDC CABLE - MKR50A/MC50G/X

Deep-Dive with AI

Documents3365 Series Datasheet 891 Series Datasheet +3

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.50
		10	$ 8.93
		25	$ 8.37
		50	$ 7.97
		100	$ 7.59
		250	$ 7.11
		500	$ 6.77
		1000	$ 6.45

Description

General part information

M1DXA Series

50 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1DXA-5036J	M1DXA Series

Cable Termination	IDC	IDC
Color	-	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length [x]	3 ft	3 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 m
Number of Positions	50	10 - 60
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1DXA Series

IDC CABLE - MKR14A/MC14F/X

Part	Contact Finish Thickness	Contact Finish Thickness	Color	Connector Type	Pitch - Cable	Pitch - Cable	Cable Termination	Features	Number of Rows	Shielding	Number of Positions	Pitch - Connector	Pitch - Connector	Contact Finish	Length [x]	Length [x]
3M M1DXA-1440K	0.76 Ám	30 Áin	Multiple, Twisted Pair (Flat)	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	14	0.1 in	2.54 mm	Gold	1.02 m	3.34 ft
3M M1DXA-3440K	0.76 Ám	30 Áin	Multiple, Twisted Pair (Flat)	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	34	0.1 in	2.54 mm	Gold	1.02 m	3.34 ft
3M M1DXA-4040K	0.76 Ám	30 Áin	Multiple, Twisted Pair (Flat)	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	40	0.1 in	2.54 mm	Gold	1.02 m	3.34 ft
3M M1DXA-2036R	0.76 Ám	30 Áin	Multiple, Ribbon	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	20	0.1 in	2.54 mm	Gold	914.4 mm	3 ft
3M M1DXA-2436R	0.76 Ám	30 Áin	Multiple, Ribbon	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	24	0.1 in	2.54 mm	Gold	914.4 mm	3 ft
3M M1DXA-1036R	0.76 Ám	30 Áin	Multiple, Ribbon	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	10	0.1 in	2.54 mm	Gold	914.4 mm	3 ft
3M M1DXA-2636J	0.76 Ám	30 Áin		Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	26	0.1 in	2.54 mm	Gold	914.4 mm	3 ft
3M M1DXA-5036J	0.76 Ám	30 Áin		Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	50	0.1 in	2.54 mm	Gold	914.4 mm	3 ft
3M M1DXA-4036R	0.76 Ám	30 Áin	Multiple, Ribbon	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	40	0.1 in	2.54 mm	Gold	914.4 mm	3 ft
3M M1DXA-3036R	0.76 Ám	30 Áin	Multiple, Ribbon	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key, Strain Relief	2	Unshielded	30	0.1 in	2.54 mm	Gold	914.4 mm	3 ft
