ACDA56-51PBWA/A

Active

Kingbright

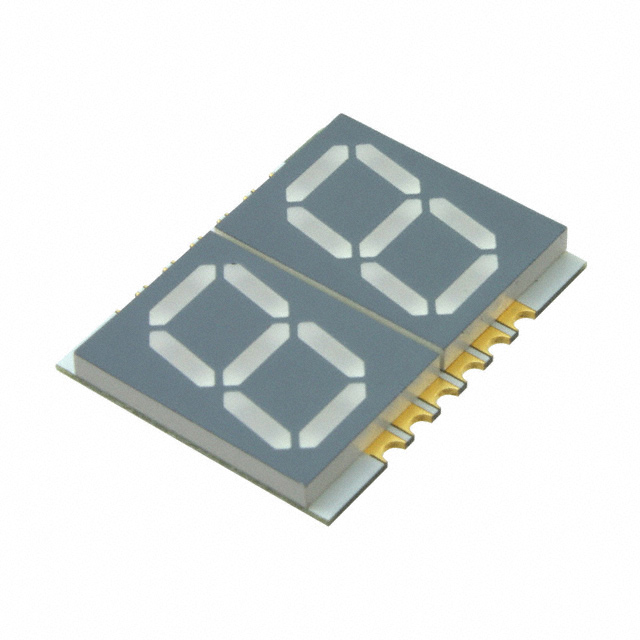

DISPLAY 7SEG 0.56" DBL BLU 12SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACDA56-51PBWA/A

Active

Kingbright

DISPLAY 7SEG 0.56" DBL BLU 12SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 11.11
		10	$ 8.06
		100	$ 6.66
	Digi-Reel®	1	$ 11.11
		10	$ 8.06
		100	$ 6.66
	Tape & Reel (TR)	200	$ 5.25

Description

General part information

ACDA56 Series

Display Modules - LED Character and Numeric Blue 7-Segment 2 Character Common Anode 3.2V 20mA 0.669" H x 0.996" W x 0.094" D (17.00mm x 25.30mm x 2.40mm) 12-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACDA56-51PBWA/A	ACDA56 Series

Color	Blue	Yellow, Red, Green, Blue
Common Pin	Common Anode	Common Anode
Current - Test	20 mA	10 - 20 mA
Digit/Alpha Size	0.56 in	0.56 in
Digit/Alpha Size	14.22 mm	14.22 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	4 mcd	4 - 117 mcd
Number of Characters	2	2
Number of Characters	-	1
Package / Case	12-SMD, No Lead	12-SMD, No Lead, 20-SMD, No Lead, 10-SMD, No Lead
Power Dissipation (Max) [Max]	120 mW	62.5 - 120 mw
Size / Dimension [x]	17 mm	3.75 - 17 mm
Size / Dimension [x]	0.669 "	0.148 - 0.669 "
Size / Dimension [y]	0.996 in	0.492 - 0.996 in
Size / Dimension [y]	25.3 mm	12.5 - 25.3 mm
Size / Dimension [z]	2.4 mm	2.4 - 19 mm
Size / Dimension [z]	0.094 "	0.094 - 0.748 "
Voltage - Forward (Vf) (Typ)	3.2 V	1.85 - 3.3 V
Wavelength - Peak	468 nm	468 - 660 nm

ACDA56 Series

LED DISPLAYS & ACCESSORIES 0.56" DUAL DIGIT YEL SMD LED DISPLAY

Part	Current - Test	Millicandela Rating	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Number of Characters	Power Dissipation (Max) [Max]	Common Pin	Display Type	Color	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Characters [custom]
Kingbright ACDA56-51SYKWA	20 mA	117 mcd	590 nm	0.56 in	14.22 mm	12-SMD, No Lead	2	75 mw	Common Anode	7-Segment	Yellow	2 V	17 mm	2.4 mm	0.094 "	0.996 in	0.669 "	25.3 mm
Kingbright ACDA56-41SRWA-F01	20 mA		660 nm	0.56 in	14.22 mm	20-SMD, No Lead	2	75 mw	Common Anode	7-Segment	Red	1.85 V	17 mm	3.75 mm	0.148 in	0.988 "	0.669 "	25.1 mm
Kingbright ACDA56-41EWA-F01	10 mA	5.4 mcd	627 nm	0.56 in	14.22 mm	20-SMD, No Lead	2	75 mw	Common Anode	7-Segment	Red	2.5 V	3.75 mm	19 mm	0.748 "	0.988 "	0.148 "	25.1 mm
Kingbright ACDA56-51CGKWA	20 mA			0.56 in	14.22 mm	12-SMD, No Lead	2	75 mw	Common Anode	7-Segment	Green	2.1 V	17 mm	2.4 mm	0.094 "	0.996 in	0.669 "	25.3 mm
Kingbright ACDA56-41QBWA/D-F01	20 mA	15 mcd	468 nm	0.56 in	14.22 mm	20-SMD, No Lead	2	120 mW	Common Anode	7-Segment	Blue	3.3 V	17 mm	3.75 mm	0.148 in	0.988 "	0.669 "	25.1 mm
Kingbright ACDA56-41SYKWA-F01	20 mA	76 mcd	590 nm	0.56 in	14.22 mm	20-SMD, No Lead	2	75 mw	Common Anode	7-Segment	Yellow	2 V	17 mm	3.75 mm	0.148 in	0.988 "	0.669 "	25.1 mm
Kingbright ACDA56-41SURKWA-F01	20 mA	44 mcd	650 nm	0.56 in	14.22 mm	20-SMD, No Lead	2	75 mw	Common Anode	7-Segment	Red	1.95 V	17 mm	3.75 mm	0.148 in	0.988 "	0.669 "	25.1 mm
Kingbright ACDA56-41SGWA-F01	20 mA	6 mcd	565 nm	0.56 in	14.22 mm	20-SMD, No Lead	2	62.5 mW	Common Anode	7-Segment	Green	2.2 V	17 mm	3.75 mm	0.148 in	0.988 "	0.669 "	25.1 mm
Kingbright ACDA56-51PBWA/A	20 mA	4 mcd	468 nm	0.56 in	14.22 mm	12-SMD, No Lead	2	120 mW	Common Anode	7-Segment	Blue	3.2 V	17 mm	2.4 mm	0.094 "	0.996 in	0.669 "	25.3 mm
Kingbright ACDA56-51SURKWA	20 mA	36 mcd	650 nm	0.56 in	14.22 mm	10-SMD, No Lead		75 mw	Common Anode	7-Segment	Red	1.95 V	17 mm	2.4 mm	0.094 "	0.492 "	0.669 "	12.5 mm	1
