W8C82-6SG-528

Active

Conxall/Switchcraft

CONN RCPT FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W8C82-6SG-528

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	6.6 mm
Cable Opening [diameter]	7.24 mm
Cable Opening [diameter]	0.285 in, 0.26 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant, Backshell
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	4
Number of Positions [custom]	6
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	125 VDC

CONN RCPT FMALE 6P GOLD SLDR CUP

Part	Orientation	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Applications	Voltage Rating	Color	Backshell Material, Plating	Contact Finish - Mating	Current Rating (Amps)	Insert Material	Primary Material	Fastening Type	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Shielding	Contact Material
Conxall/Switchcraft W8C82-6SG-528	Keyed	Female Sockets, Plug	85 °C	-40 °C	Backshell, UV Resistant	4	6	2	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	125 VDC	Black	Thermoplastic	Gold	Varies by Wire Gauge	Thermoplastic	Plastic	Bayonet Lock	IP67, IP69K	6.6 mm	7.24 mm	0.26 in, 0.285 in	Unshielded	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

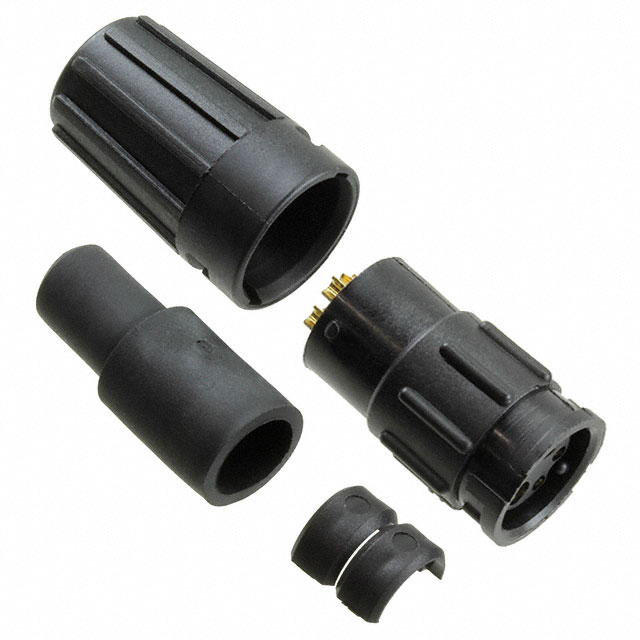

6 (4 + 2 Power) Position Circular Connector Plug, Female Sockets Solder Cup
