Q-0E04K0008012i

Active

Amphenol Custom Cable

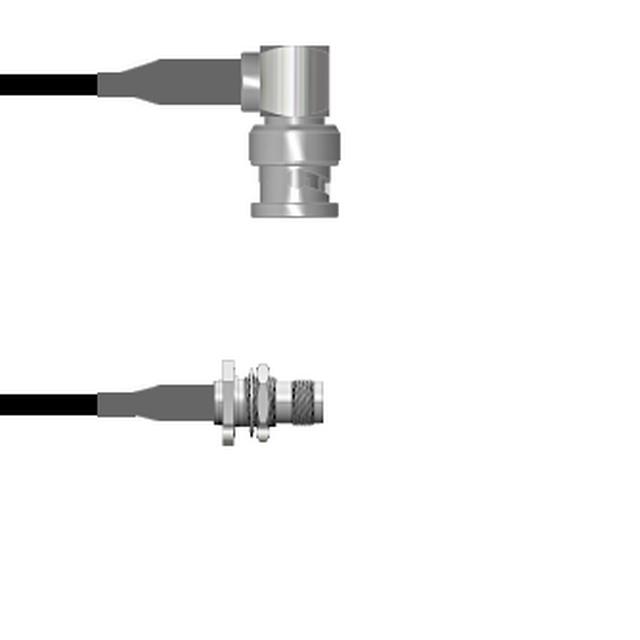

COAX CBL BNC TO TNC 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E04K0008012i

Active

Amphenol Custom Cable

COAX CBL BNC TO TNC 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E04K0008012i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0E04K0 Series

Part	Style	2nd Contact Gender	2nd Connector	1st Contact Gender	Color	Cable Type	Features	Overall Impedance	1st Connector	Length	Length	1st Connector Mounting Type	2nd Connector Mounting Feature	2nd Connector Mounting Type	Frequency - Max [Max]	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0E04K0008024i	BNC to TNC	Female	TNC Jack	Male	Black	RG-58	Shielded	50 Ohms	BNC Plug Right Angle	24 "	609.6 mm	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	4 GHz
Amphenol Custom Cable Q-0E04K0008084i	BNC to TNC	Female	TNC Jack	Male	Black	RG-58	Shielded	50 Ohms	BNC Plug Right Angle	84 in	2.1 m	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	4 GHz	7 ft
Amphenol Custom Cable Q-0E04K00080.5M	BNC to TNC	Female	TNC Jack	Male	Black	RG-58	Shielded	50 Ohms	BNC Plug Right Angle	19.69 "	50 cm	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	4 GHz
Amphenol Custom Cable Q-0E04K0008012i	BNC to TNC	Female	TNC Jack	Male	Black	RG-58	Shielded	50 Ohms	BNC Plug Right Angle	12 "	304.8 mm	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	4 GHz
Amphenol Custom Cable Q-0E04K0008048i	BNC to TNC	Female	TNC Jack	Male	Black	RG-58	Shielded	50 Ohms	BNC Plug Right Angle	48 in	1200 mm	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	4 GHz	4 ft
Amphenol Custom Cable Q-0E04K0008108i	BNC to TNC	Female	TNC Jack	Male	Black	RG-58	Shielded	50 Ohms	BNC Plug Right Angle	108 in	2.7 m	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	4 GHz	9 ft
Amphenol Custom Cable Q-0E04K00082.5M	BNC to TNC	Female	TNC Jack	Male	Black	RG-58	Shielded	50 Ohms	BNC Plug Right Angle	98.4 in	2.5 m	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	4 GHz	8.2 '
Amphenol Custom Cable Q-0E04K0008018i	BNC to TNC	Female	TNC Jack	Male	Black	RG-58	Shielded	50 Ohms	BNC Plug Right Angle			Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	4 GHz		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 63.28
		25	$ 62.05
		50	$ 60.82
		100	$ 59.59
		250	$ 58.36

Description

General part information

Q-0E04K0 Series

Cable Assembly Coaxial BNC to TNC RG-58 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
