20020012-G041B01LF

Active
AMPHENOL ANYTEK

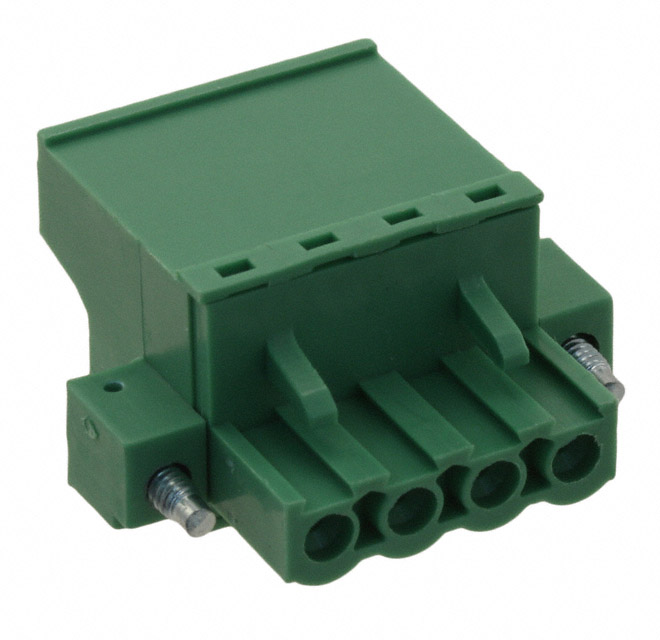

TERM BLOCK PLUG 4POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
20020012-G041B01LF - 20020012-G041B01LF

20020012-G041B01LF

Active
AMPHENOL ANYTEK

TERM BLOCK PLUG 4POS STR 5MM

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification20020012-G041B01LF20020012 Series
ColorGreenGreen
Contact MaterialCopper AlloyCopper Alloy
Contact Mating FinishTinTin
Current - UL10 A10 A
FeaturesRetention Latches (Non-Wire Side), Mating FlangeRetention Latches (Non-Wire Side), Mating Flange
Housing MaterialThermoplastic ResinThermoplastic Resin
Insulation Height1.083 in1.083 in
Insulation Height27.51 mm27.51 mm
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeFree Hanging (In-Line)Free Hanging (In-Line)
Number of Levels11
Number of Positions44 - 10
Operating Temperature [Max]115 °C115 °C
Operating Temperature [Min]-40 °C-40 °C
Pitch [x]5 mm5 - 5.08 mm
Pitch [x]0.197 in0.197 - 0.2 in
Positions Per Level43 - 10
Screw SizeM2.5M2.5
Termination StyleScrew - Pressure ClipScrew - Pressure Clip
Torque - Screw0.4 Nm0.4 Nm
Torque - Screw3.5 Lb-In3.5 Lb-In
TypePlug, Female SocketsPlug, Female Sockets
Voltage - UL300 V300 V
Wire Gauge or Range - AWG [Max]22 AWG22 AWG
Wire Gauge or Range - AWG [Min]12 AWG12 AWG
Wire Gauge or Range - mm˛ [Max]2.5 mm˛2.5 mm˛
Wire Gauge or Range - mm˛ [Min]1 mm˛1 mm˛
Wire Gauge or Range - mm²-2.5 mm²
Wire Gauge or Range - mm²-1 mm²
Wire Strip Length [Max]7 mm7 mm
Wire Strip Length [Min]6 mm6 mm

20020012 Series

TERM BLOCK PLUG 3POS STR 5.08MM

PartMaterial Flammability RatingInsulation HeightInsulation HeightWire Strip Length [Max]Wire Strip Length [Min]Contact Mating FinishContact MaterialHousing MaterialScrew SizeWire Gauge or Range - mm² [Max]Wire Gauge or Range - mm² [Min]Wire Gauge or Range - AWG [Min]Wire Gauge or Range - AWG [Max]Mounting TypePitch [x]Pitch [x]TypeVoltage - ULTorque - ScrewTorque - ScrewColorOperating Temperature [Min]Operating Temperature [Max]Current - ULTermination StyleNumber of LevelsFeaturesPositions Per LevelNumber of PositionsWire Gauge or Range - mm˛ [Min]Wire Gauge or Range - mm˛ [Max]
AMPHENOL ANYTEK
20020012-H031B01LF
UL94 V-0
1.083 in
27.51 mm
7 mm
6 mm
Tin
Copper Alloy
Thermoplastic Resin
M2.5
2.5 mm²
1 mm²
12 AWG
22 AWG
Free Hanging (In-Line)
0.2 in
5.08 mm
Plug, Female Sockets
300 V
0.4 Nm
3.5 Lb-In
Green
-40 °C
115 °C
10 A
Screw - Pressure Clip
1
Mating Flange, Retention Latches (Non-Wire Side)
3
AMPHENOL ANYTEK
20020012-G081B01LF
UL94 V-0
1.083 in
27.51 mm
7 mm
6 mm
Tin
Copper Alloy
Thermoplastic Resin
M2.5
2.5 mm²
1 mm²
12 AWG
22 AWG
Free Hanging (In-Line)
0.197 in
5 mm
Plug, Female Sockets
300 V
0.4 Nm
3.5 Lb-In
Green
-40 °C
115 °C
10 A
Screw - Pressure Clip
1
Mating Flange, Retention Latches (Non-Wire Side)
8
8
AMPHENOL ANYTEK
20020012-G041B01LF
UL94 V-0
1.083 in
27.51 mm
7 mm
6 mm
Tin
Copper Alloy
Thermoplastic Resin
M2.5
12 AWG
22 AWG
Free Hanging (In-Line)
0.197 in
5 mm
Plug, Female Sockets
300 V
0.4 Nm
3.5 Lb-In
Green
-40 °C
115 °C
10 A
Screw - Pressure Clip
1
Mating Flange, Retention Latches (Non-Wire Side)
4
4
1 mm˛
2.5 mm˛
AMPHENOL ANYTEK
20020012-G101B01LF
UL94 V-0
1.083 in
27.51 mm
7 mm
6 mm
Tin
Copper Alloy
Thermoplastic Resin
M2.5
12 AWG
22 AWG
Free Hanging (In-Line)
0.197 in
5 mm
Plug, Female Sockets
300 V
0.4 Nm
3.5 Lb-In
Green
-40 °C
115 °C
10 A
Screw - Pressure Clip
1
Mating Flange, Retention Latches (Non-Wire Side)
10
10
1 mm˛
2.5 mm˛
AMPHENOL ANYTEK
20020012-H061B01LF
UL94 V-0
1.083 in
27.51 mm
7 mm
6 mm
Tin
Copper Alloy
Thermoplastic Resin
M2.5
2.5 mm²
1 mm²
12 AWG
22 AWG
Free Hanging (In-Line)
0.2 in
5.08 mm
Plug, Female Sockets
300 V
0.4 Nm
3.5 Lb-In
Green
-40 °C
115 °C
10 A
Screw - Pressure Clip
1
Mating Flange, Retention Latches (Non-Wire Side)
6
6
AMPHENOL ANYTEK
20020012-G031B01LF
UL94 V-0
1.083 in
27.51 mm
7 mm
6 mm
Tin
Copper Alloy
Thermoplastic Resin
M2.5
2.5 mm²
1 mm²
12 AWG
22 AWG
Free Hanging (In-Line)
0.197 in
5 mm
Plug, Female Sockets
300 V
0.4 Nm
3.5 Lb-In
Green
-40 °C
115 °C
10 A
Screw - Pressure Clip
1
Mating Flange, Retention Latches (Non-Wire Side)
3
AMPHENOL ANYTEK
20020012-H101B01LF
UL94 V-0
1.083 in
27.51 mm
7 mm
6 mm
Tin
Copper Alloy
Thermoplastic Resin
M2.5
12 AWG
22 AWG
Free Hanging (In-Line)
0.2 in
5.08 mm
Plug, Female Sockets
300 V
0.4 Nm
3.5 Lb-In
Green
-40 °C
115 °C
10 A
Screw - Pressure Clip
1
Mating Flange, Retention Latches (Non-Wire Side)
10
10
1 mm˛
2.5 mm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1330$ 1.09

Description

General part information

20020012 Series

4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Datasheet
