BEC38-A-T

Active

Panduit Corp

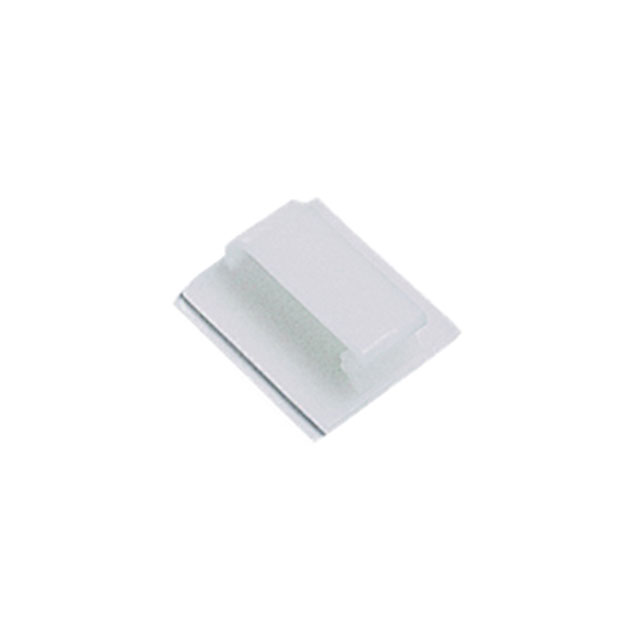

FASTENER, BEVEL ENTRY, ADHESIVE BACKED CABLE CLAMP, 9.6 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPANDUIT® Adhesive Backed Mounts and Devices Datasheet

BEC38-A-T

Active

Panduit Corp

FASTENER, BEVEL ENTRY, ADHESIVE BACKED CABLE CLAMP, 9.6 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL

Deep-Dive with AI

DocumentsPANDUIT® Adhesive Backed Mounts and Devices Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BEC38-A-T	BEC38 Series

Adhesive	Rubber Based	Rubber Based
Color	Natural	Natural, Black
Height [z]	0.52 in	0.52 in
Height [z]	13.21 mm	13.21 mm
Length	37.08 mm	37.08 mm
Length	1.46 "	1.46 "
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Adhesive	Adhesive
Opening Size [custom]	9.65 mm	9.65 mm
Opening Size [custom]	0.38 in	0.38 in
Type	Clip, Wire Saddle	Clip, Wire Saddle
Type Attributes	Side Entry	Side Entry
Width [x]	31.5 mm	31.5 mm
Width [x]	1.24 in	1.24 in

BEC38 Series

FASTENER, BEVEL ENTRY, ADHESIVE BACKED CABLE CLAMP, 9.6 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL

Part	Material	Height [z]	Height [z]	Opening Size [custom]	Opening Size [custom]	Adhesive	Width [x]	Width [x]	Length	Length	Type	Mounting Type	Type Attributes	Color
Panduit Corp BEC38-A-L	Polyamide (PA66), Nylon 6/6	0.52 in	13.21 mm	9.65 mm	0.38 in	Rubber Based	31.5 mm	1.24 in	37.08 mm	1.46 "	Clip, Wire Saddle	Adhesive	Side Entry	Natural
Panduit Corp BEC38-A-L20	Polyamide (PA66), Nylon 6/6	0.52 in	13.21 mm	9.65 mm	0.38 in	Rubber Based	31.5 mm	1.24 in	37.08 mm	1.46 "	Clip, Wire Saddle	Adhesive	Side Entry	Black
Panduit Corp BEC38-A-T	Polyamide (PA66), Nylon 6/6	0.52 in	13.21 mm	9.65 mm	0.38 in	Rubber Based	31.5 mm	1.24 in	37.08 mm	1.46 "	Clip, Wire Saddle	Adhesive	Side Entry	Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 1.07
Newark	Pack of 200	1	$ 217.51
		2	$ 211.56
		5	$ 194.67

Description

General part information

BEC38 Series

Rubber-based adhesive backed bevel entry clips provide a strong and reliable bond and fast installation. rubber-based adhesive backed bevel entry clips provide a strong and reliable bond and fast installation.
