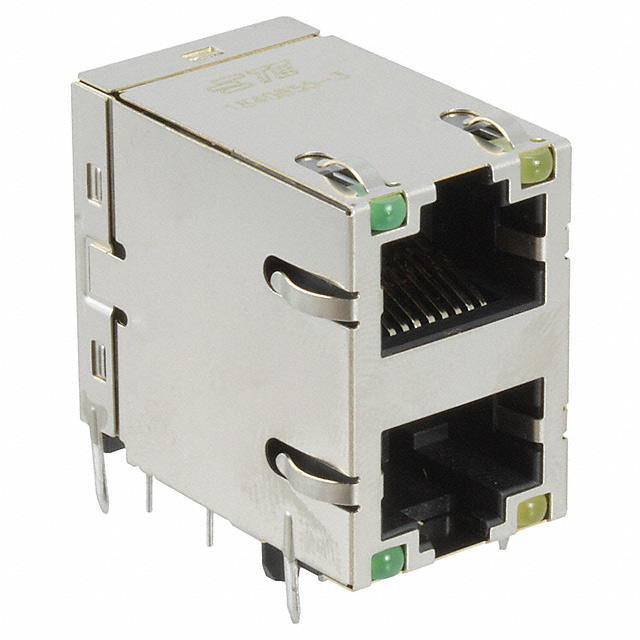

1840855-3

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T

Technical Specifications

Parameters and characteristics for this part

CONN JACK 2PORT 1000 BASE-T

Part	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Housing Material	Tab Direction	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Height Above Board	Height Above Board	Termination	Features	LED Color	Shielding	Connector Type	Shield Material	Orientation	Applications	Number of Ports	Mounting Type	Number of Cores per Jack
TRP Connector B.V. 1840855-3	Phosphor Bronze	50 µin	1.27 µm	Gold	Thermoplastic	Up and Down	70 °C	0 °C	2	25.5 mm	1.004 in	Solder	Board Guide	Green, Yellow	Shielded, EMI Finger	RJ45	Brass	90 °	10/100/1000 Base-T, AutoMDIX	2	Through Hole	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
