10SEQP270M

Active

Panasonic Electronic Components

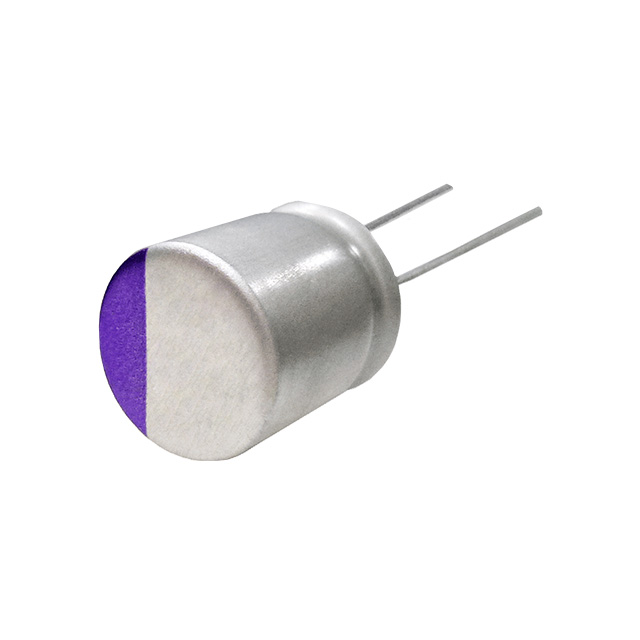

CAP ALUM POLY 270UF 20% 10V TH

Search across all available documentation for this part.

Active

Panasonic Electronic Components

CAP ALUM POLY 270UF 20% 10V TH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

270 µF 10 V Aluminum - Polymer Capacitors Radial, Can 25mOhm 1000 Hrs @ 125°C

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	10SEQP270M	10SEQP Series

Applications	General Purpose	General Purpose
Capacitance	270 µF	56 - 560 µF
ESR (Equivalent Series Resistance)	25 mOhm	13 - 45 mOhms
Height - Seated (Max)	-	6 - 7 mm
Height - Seated (Max)	-	0.236 - 0.276 "
Height - Seated (Max) [Max] [z]	8 mm	8 - 13 mm
Height - Seated (Max) [Max] [z]	0.315 in	0.315 - 0.512 "
Lead Spacing	5 mm	2.5 - 5 mm
Lead Spacing	0.197 in	0.098 - 0.197 in
Lifetime @ Temp.	1000 Hrs	1000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can	Radial, Can
Ripple Current @ High Frequency	1.17 A	1.17 - 5.23 A
Ripple Current @ Low Frequency	58.5 mA	58.5 - 261.5 mA
Size / Dimension [diameter]	10 mm	6.3 - 10 mm
Size / Dimension [diameter]	0.394 in	0.248 - 0.394 in
Tolerance	20 %	20 %
Type	Polymer	Polymer
Voltage - Rated	10 V	10 V

CAP ALUM POLY 560UF 20% 10V TH

Part	Voltage - Rated	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Type	Mounting Type	Tolerance	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components 10SEQP560M	10 V	560 µF	10 mm	0.394 in	1000 Hrs	Polymer	Through Hole	20 %	13 mOhms	5.23 A	261.5 mA	5 mm	0.197 in	-55 °C	125 °C	13 mm	0.512 "	Radial, Can	General Purpose
Panasonic Electronic Components 10SEQP330M	10 V	330 µF	8 mm	0.315 "	1000 Hrs	Polymer	Through Hole	20 %	17 mOhm	3.95 A	197.5 mA	3.5 mm	0.138 in	-55 °C	125 °C	12 mm	0.472 "	Radial, Can	General Purpose
Panasonic Electronic Components 10SEQP270M	10 V	270 µF	10 mm	0.394 in	1000 Hrs	Polymer	Through Hole	20 %	25 mOhm	1.17 A	58.5 mA	5 mm	0.197 in	-55 °C	125 °C	8 mm	0.315 in	Radial, Can	General Purpose
Panasonic Electronic Components 10SEQP120M	10 V	120 µF	8 mm	0.315 "	1000 Hrs	Polymer	Through Hole	20 %	35 mOhms	2.56 A	128 mA	3.5 mm	0.138 in	-55 °C	125 °C			Radial, Can	General Purpose	7 mm	0.276 "
Panasonic Electronic Components 10SEQP56M	10 V	56 µF	6.3 mm	0.248 in	1000 Hrs	Polymer	Through Hole	20 %	45 mOhm	1.7 A	85 mA	2.5 mm	0.098 in	-55 °C	125 °C			Radial, Can	General Purpose	6 mm	0.236 in
