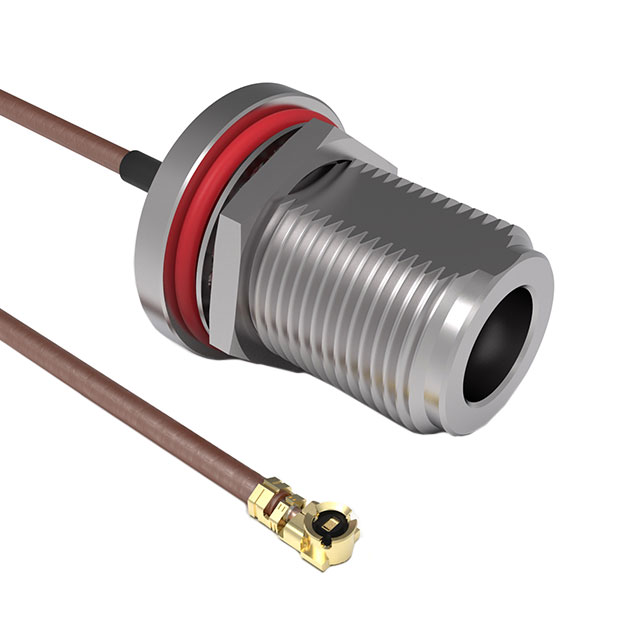

CABLE 329 RF-150-A

Active

GCT (Gradconn)

COAX CBL MHF1 TO N-TYPE 5.9"

Search across all available documentation for this part.

Active

GCT (Gradconn)

COAX CBL MHF1 TO N-TYPE 5.9"

Technical Specifications

Parameters and characteristics for this part

Specification	CABLE 329 RF-150-A

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	I-PEX MHF1 Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Brown
Features	IP Rated Unmated
Frequency - Max [Max]	6000 MHz
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Length [x]	150 mm
Length [x]	5.906 "
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	I-PEX MHF1 to N-Type

COAX CBL MHF1 TO N-TYPE 5.9"

Part	2nd Connector	Cable Type	2nd Connector Mounting Type	Color	Overall Impedance	Features	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector Mounting Feature	1st Connector	Length [x]	Length [x]	Ingress Protection	Style	1st Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]	2nd Contact Gender	Cable Impedance
GCT (Gradconn) CABLE 329 RF-150-A	I-PEX MHF1 Plug, Right Angle	RG-178	Free Hanging (In-Line)	Brown	50 Ohms	IP Rated Unmated	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	N-Type Jack	150 mm	5.906 "	IP67/IP68 - Dust Tight, Waterproof	I-PEX MHF1 to N-Type	Female	90 °C	-40 °C	Female	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial I-PEX MHF1 to N-Type RG-178 5.906" (150.00mm)
