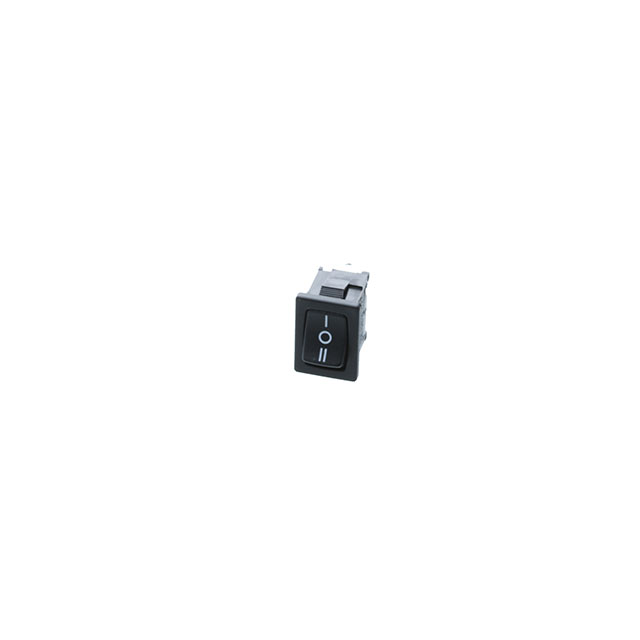

RF1-1F-DC-2-B-5

Active

Switch Components

SWITCH ROCKER SPDT 10A 125V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPDT 10A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH ROCKER SPDT 10A 125V

Part	Actuator Type	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Electrical Life	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Voltage Rating - AC	Mechanical Life	Mounting Type	Circuit	Ingress Protection
Switch Components RF1-1F-DC-2-B	Concave (Curved)	Black	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)	6000 Cycles	On-Off-On	16 A, 16 A	12 V	No Marking	13 mm	19.2 mm	CSA, cURus, ENEC	125 V	10000 Steps	Panel Mount, Snap-In	SPDT
Switch Components RF1-1F-AC-2-B-5	Concave (Curved)	Black	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)		On-Off-On	16 A		- O =	13 mm	19.2 mm	CSA, cURus, ENEC	125 V		Panel Mount, Snap-In	SPDT	IP40
Switch Components RF1-1F-DC-2-B-5	Concave (Curved)	Black	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)	6000 Cycles	On-Off-On	16 A, 16 A	12 V	I O II	13 mm	19.2 mm	CSA, cURus, ENEC	125 V	10000 Steps	Panel Mount, Snap-In	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.23

General part information

Rocker Switch SPDT 16 (AC), 16 (DC) 125 V Panel Mount, Snap-In
