WLC60XW640GAQ

Active

BANNER ENGINEERING

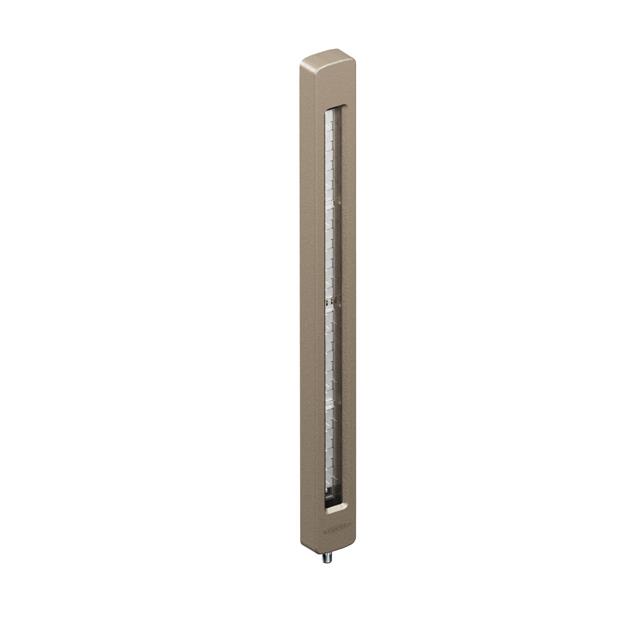

WORK LIGHT STRIP 640MM

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORK LIGHT STRIP 640MM

Technical Specifications

Parameters and characteristics for this part

Part	Housing Material	Termination Style	Lens Type	Luminous Flux	Length [x]	Length [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Profile (W x H) [x]	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [y]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Approval Agency	Illumination Color	Rated Life
BANNER ENGINEERING WLC60XW640GAQ	Aluminum (Al) Nickel Plated	Connector (M12)	Clear Flat	2600 lm	25.2 "	640 mm	12 V	30 VDC	60.9 mm	2.4 in	31.3 mm	1.23 "	-40 °C	70 °C	IP67/IP68G/IP69K	CE cULus	Cool White	60000 Hours

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 744.00
Newark	Each	1	$ 757.00

General part information

WORK LIGHT STRIP 640MM

Technical documentation and resources
