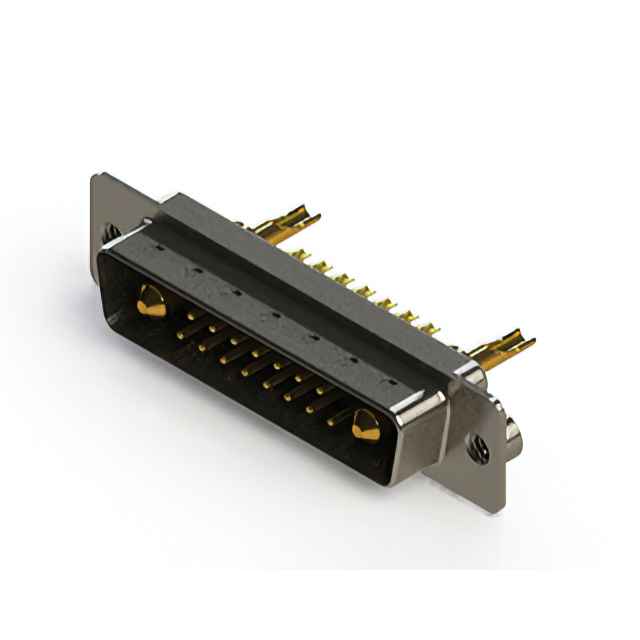

627-17W2222-1T2

Active

EDAC Inc.

CONN D-SUB PLUG 17POS SLDR CUP

627-17W2222-1T2

Active

EDAC Inc.

CONN D-SUB PLUG 17POS SLDR CUP

Description Specifications Series Pricing CAD Documents

Description

General part information

627-17W Series

17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	627-17W2222-1T2

Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	5A, 10A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Grounding Indents
Finish	Tin Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions (Normal)	15
Number of Positions (Power)	2
Number of Positions (Total)	17
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	17W2
Shell Material	Steel
Shell Size	3
Termination	Solder Cup
Voltage Rating	125 V

627-17W Series

...

Part	Contact Type	Shell Material	Finish	Current Rating Options	Connector Type	Number of Rows	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Contact Finish	Features	Shell Size	Part Code	Connector Layout	Flange Feature	Material Flammability Rating	Mounting Type	Connector Style	Termination	Contact Finish Thickness	Contact Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Dielectric Material	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Positions (Special)	Position Types	Number of Positions (Standard)
EDAC Inc. 627-17W5624-2ND	Power Signal	Steel	Nickel Plated	20A 5A	Male Pins Plug	2	5	17	12	Gold	Board Lock Grounding Indents Shielded	4	17W5	C DC	Board Side (M3)	UL94 V-0	Through Hole	Combo D-Sub	Solder	30 µin	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic
EDAC Inc. 627-17W2222-1T1	Power Signal	Steel	Tin Plated	10A 5A	Male Pins Plug	2	2	17	15	Gold	Grounding Indents Shielded	3	17W2	B DB	Housing Shell (Unthreaded)	UL94 V-0	Free Hanging (In-Line)	Combo D-Sub	Solder Cup	0	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 627-17W2624-7NB	Coax Signal	Steel	Nickel Plated		Male Pins Plug	2		17		Gold	Grounding Indents Shielded	3	17W2	B DB	Board Side (M3)	UL94 V-0	Panel Mount Through Hole	Combo D-Sub	Solder	30 µin	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic			2	Coax	15
EDAC Inc. 627-17W2224-4T2	Power Signal	Steel	Tin Plated	40A 5A	Male Pins Plug	2	2	17	15	Gold	Grounding Indents Shielded	3	17W2	B DB	Board Side (4-40)	UL94 V-0	Panel Mount Through Hole	Combo D-Sub	Solder	0	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 627-17W2624-7N4	Coax Signal	Steel	Nickel Plated		Male Pins Plug	2		17		Gold	Grounding Indents Shielded	3	17W2	B DB	Board Side (4-40) Mating Side (4-40)	UL94 V-0	Panel Mount Through Hole	Combo D-Sub	Solder	30 µin	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic			2	Coax	15
EDAC Inc. 627-17W2222-1T2	Power Signal	Steel	Tin Plated	10A 5A	Male Pins Plug	2	2	17	15	Gold	Grounding Indents Shielded	3	17W2	B DB	Board Side (4-40)	UL94 V-0	Free Hanging (In-Line)	Combo D-Sub	Solder Cup	0	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 627-17W2224-2NB	Power Signal	Steel	Nickel Plated	20A 5A	Male Pins Plug	2	2	17	15	Gold	Grounding Indents Shielded	3	17W2	B DB	Board Side (M3)	UL94 V-0	Panel Mount Through Hole	Combo D-Sub	Solder	0	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 627-17W5224-3T5	Power Signal	Steel	Tin Plated	30A 5A	Male Pins Plug	2	5	17	12	Gold	Board Lock Grounding Indents Shielded	4	17W5	C DC	Board Side (4-40)	UL94 V-0	Through Hole	Combo D-Sub	Solder	0	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 627-17W2224-5TA	Coax Signal	Steel	Tin Plated		Male Pins Plug	2		17		Gold	Grounding Indents Shielded	3	17W2	B DB	Board Side (M3)	UL94 V-0	Panel Mount Through Hole	Combo D-Sub	Solder	0	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic	Flash	Flash	2	Coax	15
EDAC Inc. 627-17W5624-1N5	Power Signal	Steel	Nickel Plated	10A 5A	Male Pins Plug	2	5	17	12	Gold	Board Lock Grounding Indents Shielded	4	17W5	C DC	Board Side (4-40)	UL94 V-0	Through Hole	Combo D-Sub	Solder	30 µin	Copper Alloy	Black	125 °C	-55 °C	125 V	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

627-17W2222-1T2 | Datasheet
