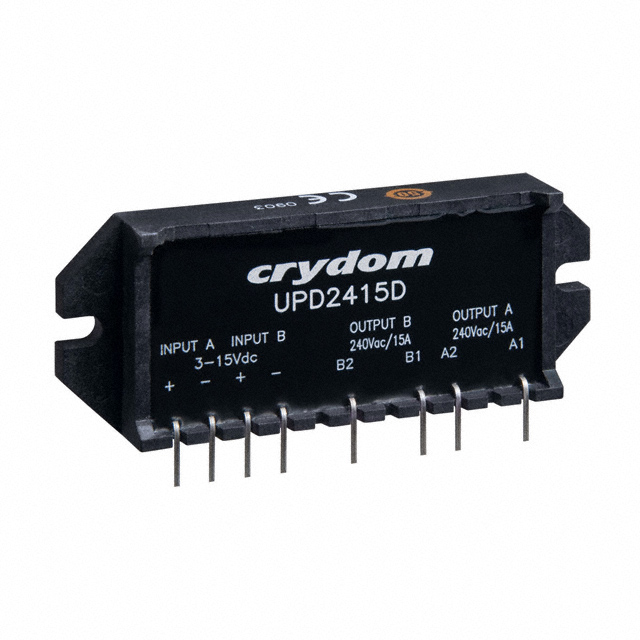

UPD2415D-10

Active

Sensata-Crydom

SSR RELAY SPST-NO 15A 24-280V

Deep-Dive with AI

DocumentsDatasheet CE Declaration of Conformity

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 84.84

Description

General part information

UPD2415 Series

Solid State SPST-NO (1 Form A) x 2 6-SIP

Documents

Technical documentation and resources

Datasheet

CE Declaration of Conformity

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPD2415D-10	UPD2415 Series

Approval Agency	CE, cURus	CE, cURus
Circuit	SPST-NO (1 Form A) x 2	SPST-NO (1 Form A) x 2, 3PST-NO (3 Form A)
Load Current	15 A	15 A
Mounting Type	Through Hole	Through Hole, Chassis Mount
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	AC	AC, AC, Zero Cross
Package / Case	6-SIP	6-SIP, Module
Supplier Device Package	6-SIP	6-SIP
Termination Style	PC Pin	PC Pin, Quick Connect - 0.250" (6.3mm)
Voltage - Input [Max]	15 V	8 - 32 V
Voltage - Input [Min]	3 V	3 - 4.5 V
Voltage - Load [Max]	280 V	280 V
Voltage - Load [Min]	24 V	24 V

UPD2415 Series

SSR RELAY SPST-NO 15A 24-280V

Part	Supplier Device Package	Output Type	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Termination Style	Mounting Type	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]
Sensata-Crydom UPD2415D-10	6-SIP	AC	CE, cURus	15 V	3 V	15 A	-40 °C	80 C	SPST-NO (1 Form A) x 2	PC Pin	Through Hole	6-SIP	24 V	280 V
Sensata-Crydom UPD2415-10	6-SIP	AC	CE, cURus	32 V	3 V	15 A	-40 °C	80 C		PC Pin	Through Hole	6-SIP	24 V	280 V
Sensata-Crydom UPD2415TP	6-SIP	AC, Zero Cross	CE, cURus	8 VDC	4.5 V	15 A	-40 °C	80 C	3PST-NO (3 Form A)	PC Pin	Through Hole	6-SIP	24 V	280 V
Sensata-Crydom UPD2415F-10		AC	CE, cURus	32 V	3 V	15 A	-40 °C	80 C		Quick Connect - 0.250" (6.3mm)	Chassis Mount	Module	24 V	280 V
Sensata-Crydom UPD2415DF		AC, Zero Cross	CE, cURus	15 V	3 V	15 A	-40 °C	80 C	SPST-NO (1 Form A) x 2	Quick Connect - 0.250" (6.3mm)	Chassis Mount	Module	24 V	280 V
Sensata-Crydom UPD2415TP-10	6-SIP	AC	CE, cURus	8 VDC	4.5 V	15 A	-40 °C	80 C	3PST-NO (3 Form A)	PC Pin	Through Hole	6-SIP	24 V	280 V
Sensata-Crydom UPD2415D	6-SIP	AC, Zero Cross	CE, cURus	15 V	3 V	15 A	-40 °C	80 C	SPST-NO (1 Form A) x 2	PC Pin	Through Hole	6-SIP	24 V	280 V
Sensata-Crydom UPD2415TPF		AC, Zero Cross	CE, cURus	8 VDC	4.5 V	15 A	-40 °C	80 C	3PST-NO (3 Form A)	Quick Connect - 0.250" (6.3mm)	Chassis Mount	Module	24 V	280 V
Sensata-Crydom UPD2415TPF-10		AC	CE, cURus	8 VDC	4.5 V	15 A	-40 °C	80 C	3PST-NO (3 Form A)	Quick Connect - 0.250" (6.3mm)	Chassis Mount	Module	24 V	280 V
Sensata-Crydom UPD2415F		AC, Zero Cross	CE, cURus	32 V	3 V	15 A	-40 °C	80 C		Quick Connect - 0.250" (6.3mm)	Chassis Mount	Module	24 V	280 V
