CM100505-47NJL

Obsolete

Bourns Inc.

FIXED IND 47NH 140MA 2.1 OHM SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 47NH 140MA 2.1 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Inductance Frequency - Test	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Q @ Freq	Type	Current Rating (Amps)	Tolerance	Material - Core	Inductance	DC Resistance (DCR) [Max]	Supplier Device Package	Frequency - Self Resonant	Package / Case	DC Resistance (DCR)
Bourns Inc. CM100505-47NJL	100 °C	-40 °C	Unshielded	100 MHz	Surface Mount	1 mm	0.02 in	0.5 mm	0.039 in	0.6 mm	0.024 in	8	Drum Core Wirewound	140 mA	5 %	Alumina	47 nH	2.1 Ohm	0402 (1005 Metric)	1.8 GHz	0402 (1005 Metric)
Bourns Inc. CM100505-2N7DL	100 °C	-40 °C	Unshielded	100 MHz	Surface Mount	1 mm	0.02 in	0.5 mm	0.039 in	0.6 mm	0.024 in	8	Drum Core Wirewound	400 mA	0.3 nH	Alumina	2.7 nH		0402 (1005 Metric)	5.5 GHz	0402 (1005 Metric)	100 mOhm
Bourns Inc. CM100505-33NJL	100 °C	-40 °C	Unshielded	100 MHz	Surface Mount	1 mm	0.02 in	0.5 mm	0.039 in	0.6 mm	0.024 in	8	Drum Core Wirewound	0.17 A	5 %	Alumina	33 nH	1.4 Ohm	0402 (1005 Metric)	1.8 GHz	0402 (1005 Metric)
Bourns Inc. CM100505-15NJL	100 °C	-40 °C	Unshielded	100 MHz	Surface Mount	1 mm	0.02 in	0.5 mm	0.039 in	0.6 mm	0.024 in	8	Drum Core Wirewound	0.24 A	5 %	Alumina	15 nH		0402 (1005 Metric)	2.5 GHz	0402 (1005 Metric)
Bourns Inc. CM100505-27NJL	100 °C	-40 °C	Unshielded	100 MHz	Surface Mount	1 mm	0.02 in	0.5 mm	0.039 in	0.6 mm	0.024 in	8	Drum Core Wirewound	0.2 A	5 %	Alumina	27 nH	1.2 Ohm	0402 (1005 Metric)	1.8 GHz	0402 (1005 Metric)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

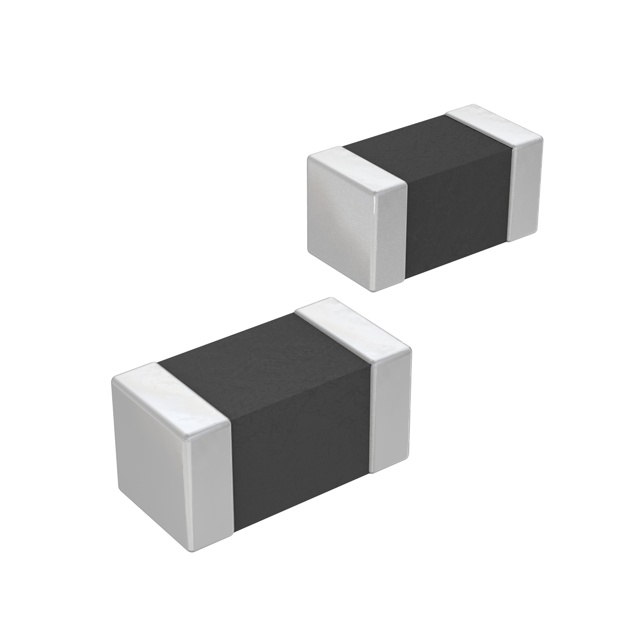

47 nH Unshielded Drum Core, Wirewound Inductor 140 mA 2.1Ohm Max 0402 (1005 Metric)
