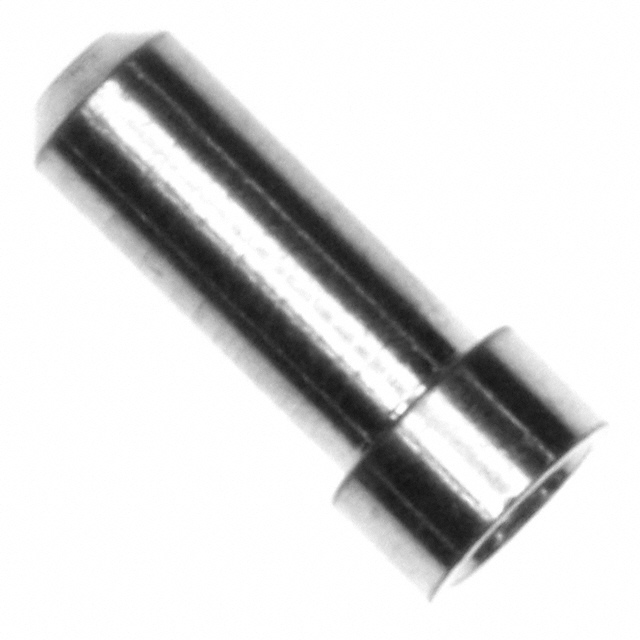

0390-0-15-01-08-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .084-.102 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0390-0-15-01-08-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .084-.102 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0390-0-15-01-08-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.102 " |
| Accepts Pin Diameter [Max] | 2.59 mm |
| Accepts Pin Diameter [Min] | 0.084 " |
| Accepts Pin Diameter [Min] | 2.13 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.188 in |
| Flange Diameter [diameter] | 4.78 mm |
| Length - Overall [x] | 11.81 mm |
| Length - Overall [x] | 0.465 in |
| Mounting Hole Diameter [diameter] | 0.144 " |
| Mounting Hole Diameter [diameter] | 3.66 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.122 in |
| Pin Hole Diameter [diameter] | 3.1 mm |
| Socket Depth | 10.54 mm |
| Socket Depth | 0.415 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.29 | |
| 10 | $ 1.09 | |||
| 25 | $ 1.04 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.97 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.71 | |||
| 2500 | $ 0.64 | |||
Description
General part information
0390-0 Series
Pin Receptacle Connector 0.084" ~ 0.102" (2.13mm ~ 2.59mm) No Tail Solder
