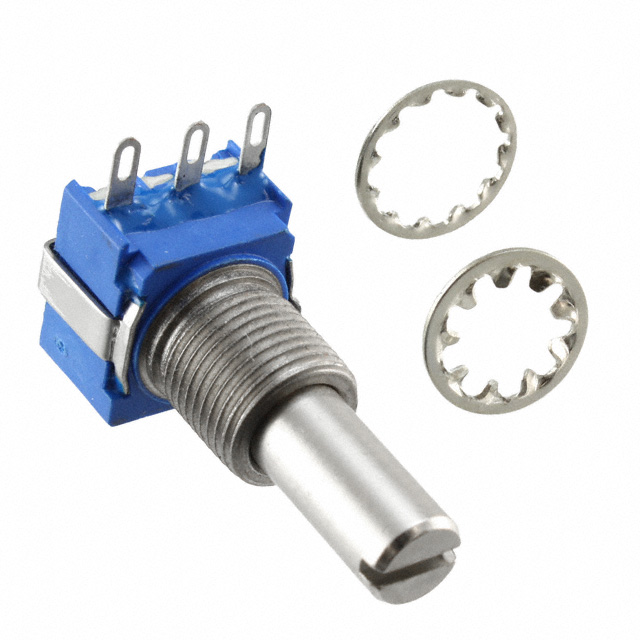

53AAA-B28-A10L

Active

Bourns Inc.

ROTARY POTENTIOMETER, 1 KOHM, 1 TURNS, LINEAR, 1 W, ± 10%, 53 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

53AAA-B28-A10L

Active

Bourns Inc.

ROTARY POTENTIOMETER, 1 KOHM, 1 TURNS, LINEAR, 1 W, ± 10%, 53 SERIES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	53AAA-B28-A10L

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length [z]	22.23 mm
Actuator Length [z]	0.875 in
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Features	Sealed
Number of Gangs	1
Number of Turns	1
Power (Watts)	1 W
Resistance (Ohms)	1 kOhms
Resistive Material	Cermet
Rotation	290 °
Size - Body [x]	0.521 in
Size - Body [x]	13.25 mm
Size - Body [y]	12.5 mm
Size - Body [y]	0.492 in
Taper	Linear
Temperature Coefficient	150 ppm/°C
Termination Style	Solder Lug
Tolerance	10 %

53AAA Series

Part	Resistive Material	Features	Tolerance	Actuator Length [z]	Actuator Length [z]	Number of Turns	Taper	Actuator Type	Termination Style	Temperature Coefficient	Bushing Thread	Size - Body [x]	Size - Body [x]	Size - Body [y]	Size - Body [y]	Power (Watts)	Resistance (Ohms)	Number of Gangs	Rotation	Actuator Diameter	Actuator Diameter [diameter]	Adjustment Type	Power (Watts)	Resistance (Ohms)
Bourns Inc. 53AAA-B28-A10L	Cermet	Sealed	10 %	22.23 mm	0.875 in	1	Linear	Slotted	Solder Lug	150 ppm/°C	3/8-32	0.521 in	13.25 mm	12.5 mm	0.492 in	1 W	1 kOhms	1	290 °	6.35 mm	0.25 in	User Defined
Bourns Inc. 53AAA-B28-B20L	Conductive Plastic	Sealed	20 %	22.23 mm	0.875 in	1	Linear	Slotted	Solder Lug	1000 ppm/°C	3/8-32	0.521 in	13.25 mm	12.5 mm	0.492 in	0.5 W	100 kOhms	1	290 °	6.35 mm	0.25 in	User Defined	0.5 W
Bourns Inc. 53AAA-B24-D15L	Conductive Plastic	Sealed	20 %	19.05 mm	0.75 in	1	Logarithmic	Slotted	Solder Lug	1000 ppm/°C	3/8-32	0.521 in	13.25 mm	12.5 mm	0.492 in	250 mW		1	290 °	6.35 mm	0.25 in	User Defined	0.25 W	10k
Bourns Inc. 53AAA-B24-A13L	Cermet	Sealed	10 %	19.05 mm	0.75 in	1	Linear	Slotted	Solder Lug	150 ppm/°C	3/8-32	0.521 in	13.25 mm	12.5 mm	0.492 in	1 W	5 kOhms	1	290 °	6.35 mm	0.25 in	User Defined
Bourns Inc. 53AAA-B28-B15	Conductive Plastic	Sealed	20 %	22.23 mm	0.875 in	1	Linear	Slotted	Solder Lug	1000 ppm/°C	3/8-32	0.521 in	13.25 mm	12.5 mm	0.492 in	0.5 W		1	290 °	6.35 mm	0.25 in	User Defined	0.5 W	10k
Bourns Inc. 53AAA-C28-E13L	Conductive Plastic	Sealed	10 %	22.23 mm	0.875 in	1	Linear	Flatted	Solder Lug	1000 ppm/°C	3/8-32	0.521 in	13.25 mm	12.5 mm	0.492 in	0.5 W	5 kOhms	1	290 °	6.35 mm	0.25 in	Side Adjustment	0.5 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.96
		10	$ 12.49
		45	$ 10.18
		90	$ 9.26
		270	$ 7.40
		540	$ 7.17
		1035	$ 6.71
Newark	Each	250	$ 6.46
		500	$ 6.01

Description

General part information

53AAA Series

1k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Cermet 1W Solder Lug
