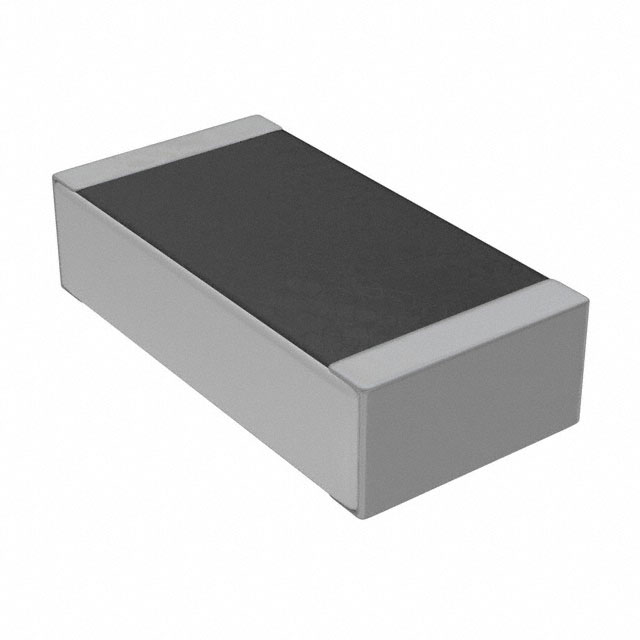

TYC1206A221JJT

Obsolete

TE Connectivity Passive Product

CAP CER 220PF 200V NP0 1206

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

CAP CER 220PF 200V NP0 1206

Technical Specifications

Parameters and characteristics commom to parts in this series

CAP CER 220PF 200V NP0 1206

Part	Applications	Features	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Capacitance	Thickness (Max) [Max]	Thickness (Max)	Mounting Type	Package / Case
TE Connectivity Passive Product TYC1206A221JJT	General Purpose	Low Dissipation Factor	200 V	-55 °C	125 °C	5 %	0.063 in	1.6 mm	0.126 "	3.2 mm	C0G, NP0	220 pF	0.031 "	0.8 mm	MLCC, Surface Mount	1206 (3216 Metric)
TE Connectivity Passive Product TYC1206A220JJT	General Purpose	Low Dissipation Factor	200 V	-55 °C	125 °C	5 %	0.063 in	1.6 mm	0.126 "	3.2 mm	C0G, NP0	22 pF	0.031 "	0.8 mm	MLCC, Surface Mount	1206 (3216 Metric)
TE Connectivity Passive Product TYC1206A471JJT	General Purpose	Low Dissipation Factor	200 V	-55 °C	125 °C	5 %	0.063 in	1.6 mm	0.126 "	3.2 mm	C0G, NP0	470 pF	0.031 "	0.8 mm	MLCC, Surface Mount	1206 (3216 Metric)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

220 pF ±5% 200V Ceramic Capacitor C0G, NP0 1206 (3216 Metric)
