01029-1574

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 1024PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 1024PPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

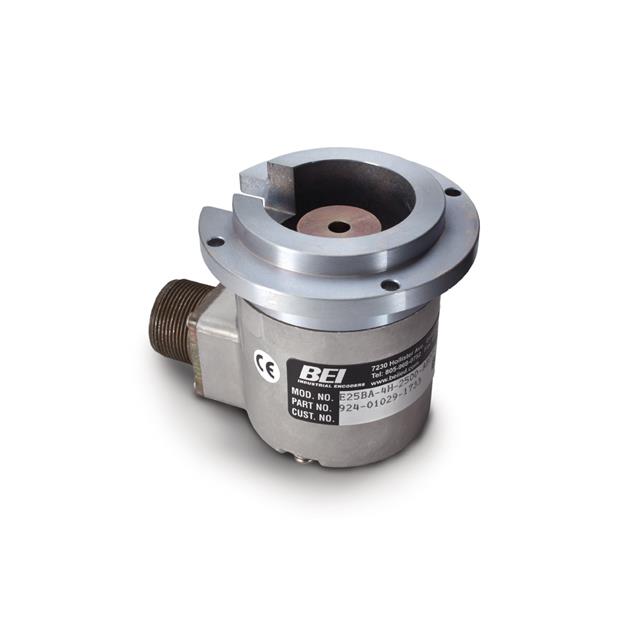

ROTARY ENCODER OPTICAL 1024PPR

Technical documentation and resources

Specification	01029-1574	01029 Series

Actuator Type	Hole for Shaft	Hole for Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Optical	Optical
Mounting Type	Chassis Mount	Chassis Mount
Orientation	User Selectable	User Selectable
Output Type	Quadrature (Incremental)	Quadrature (Incremental), Quadrature with Index (Incremental)
Pulses per Revolution	1024	50 - 2048
Rotational Life (Cycles Min) [Min]	1B	1B
Termination Style	Cable	Cable
Voltage - Supply [Max]	15 V	15 - 28 V
Voltage - Supply [Min]	5 V	5 V

Part	Mounting Type	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Encoder Type	Actuator Type	Rotational Life (Cycles Min) [Min]	Orientation	Termination Style	Pulses per Revolution
Sensata-BEI Sensors 01029-1574	Chassis Mount	Quadrature (Incremental)	5 V	15 V	Optical	Hole for Shaft	1B	User Selectable	Cable	1024
Sensata-BEI Sensors 01029-1267	Chassis Mount	Quadrature (Incremental)	5 V	15 V	Optical	Hole for Shaft	1B	User Selectable	Cable	2048
Sensata-BEI Sensors 01029-279	Chassis Mount	Quadrature with Index (Incremental)	5 V	28 V	Optical	Hole for Shaft	1B	User Selectable	Cable	50
